Leaf Area Measuring Instrument

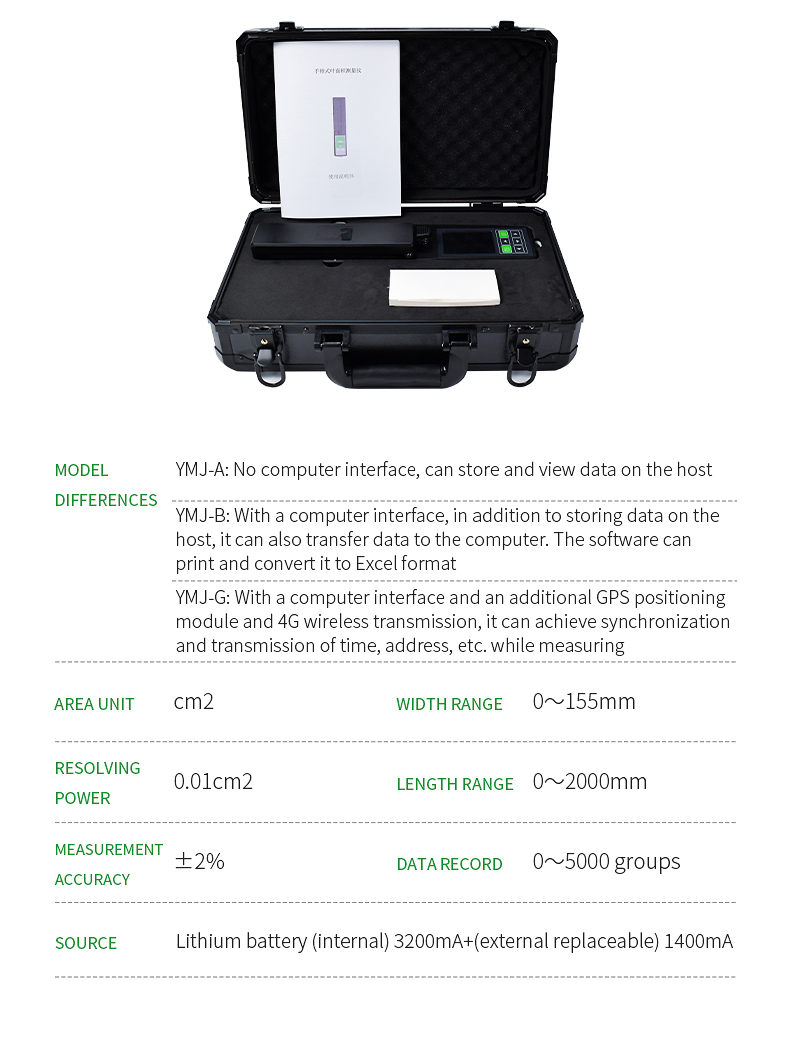

【Introduction】Computer interface, in addition to storing data on the host, can also transfer data to the computer. The software can be printed and converted to EXCEL format

Model: YMJ-B

+86 17853698681

Product details

Host Introduction:

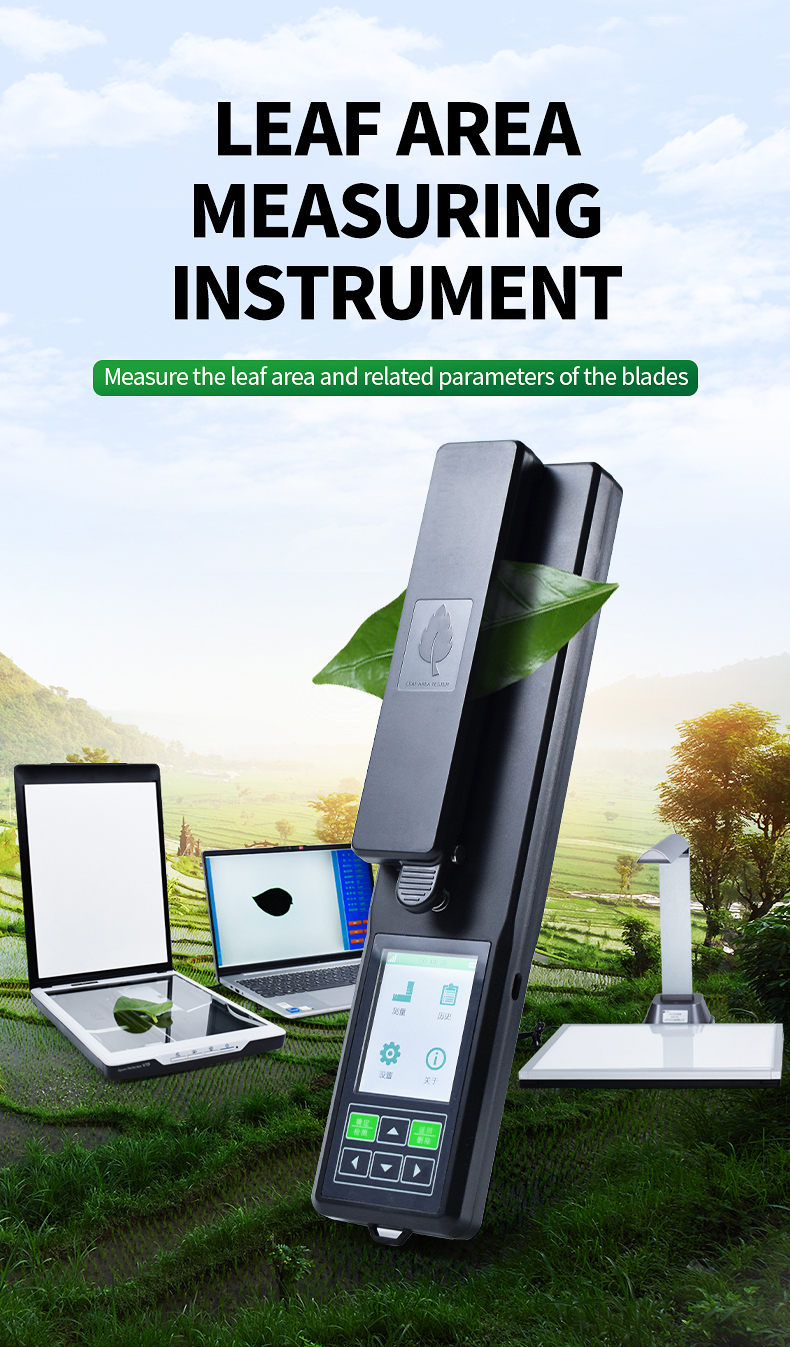

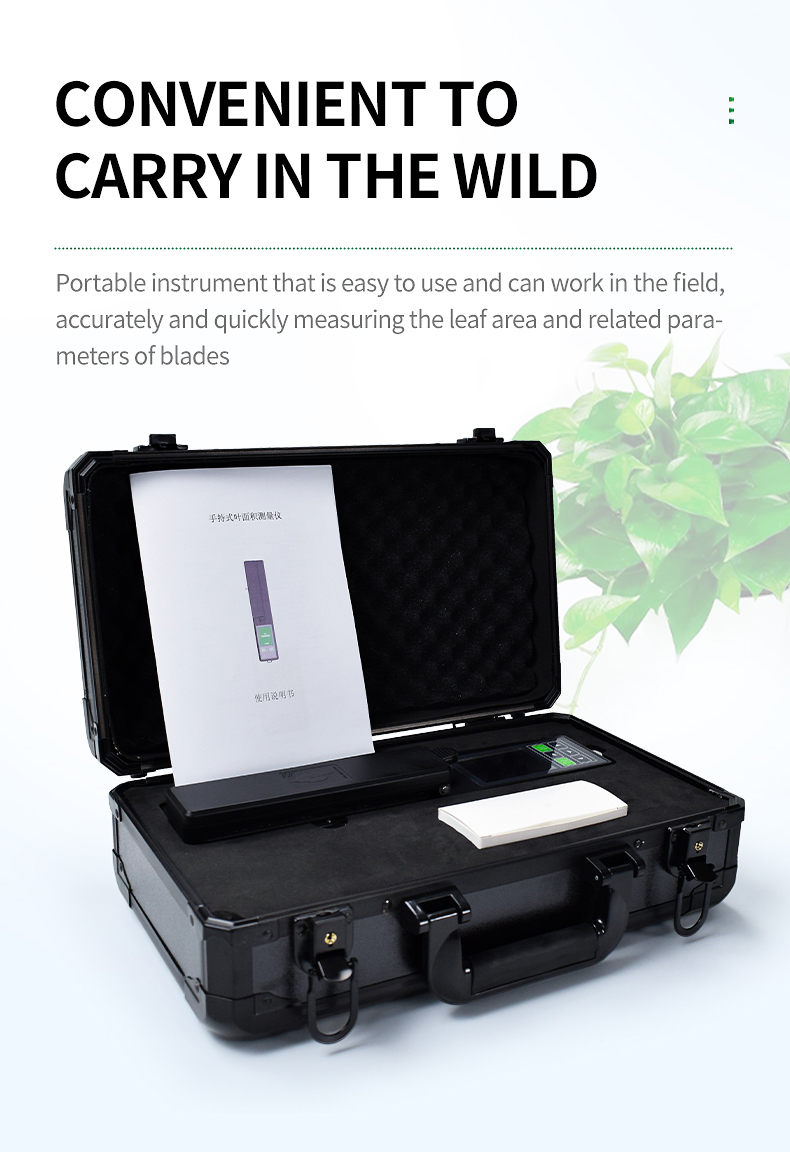

The leaf area measuring instrument is a newly developed product. It is a portable instrument that is easy to use and can work in the field. It can accurately, quickly, and without damage measure the leaf area and related parameters of leaves, as well as measure the area of harvested plant leaves and other sheet-like objects. Widely used in agriculture, meteorology, forestry and other fields.

The instrument can directly measure the length, width, and area of the blade, and integrates GPS positioning and 4G wireless transmission system. It also adds a Type-C interface, which can import measurement data and positioning information into both computers and cloud data platforms, making it convenient for researchers to further process the data.

Features:

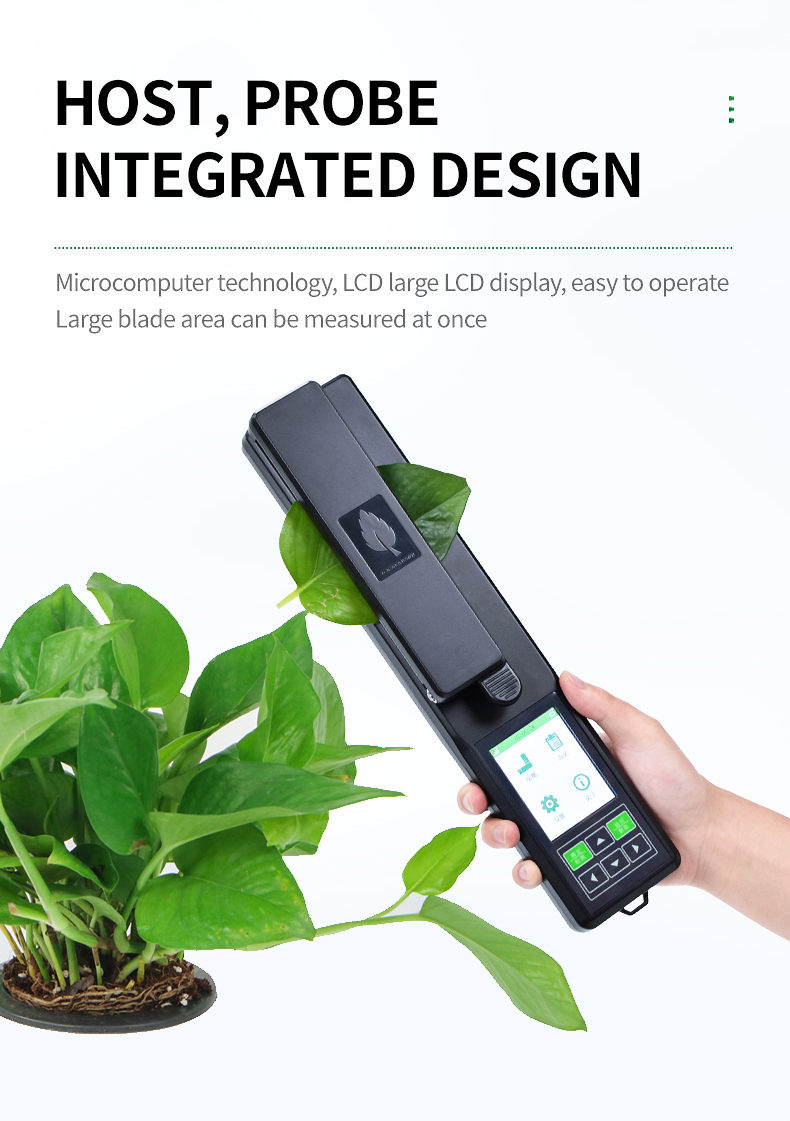

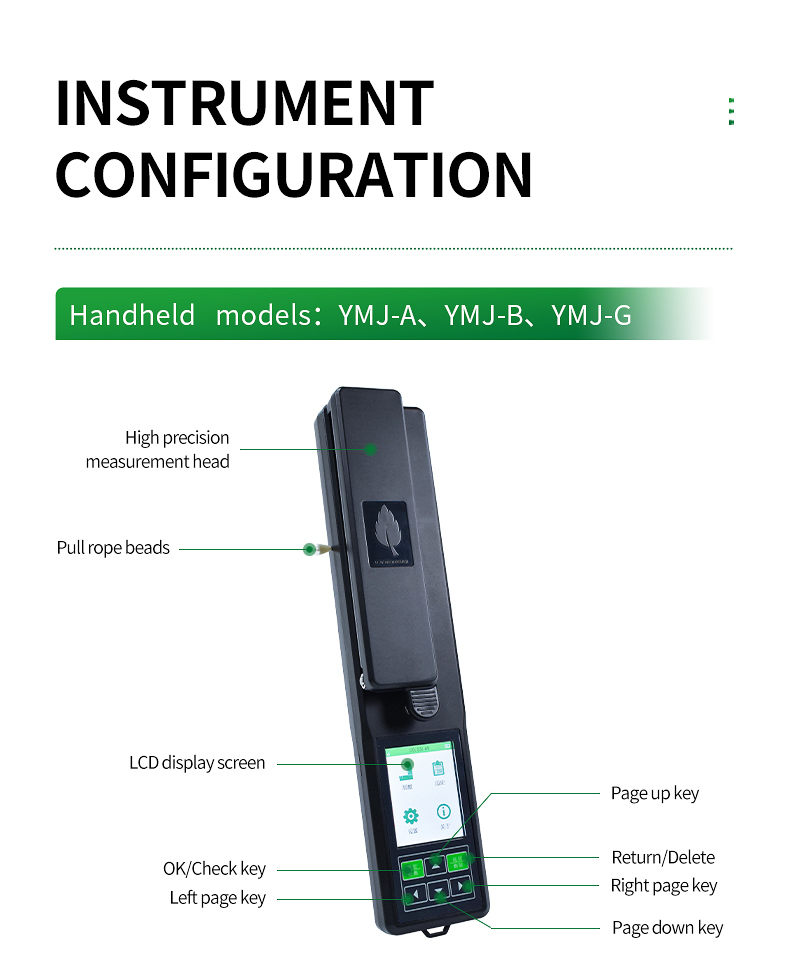

1) The integrated design of the host and probe makes operation more convenient.

2) Adopting microcomputer technology and large LCD display.

3) High performance large capacity battery, no need for external power supply, low voltage display, sustainable measurement more suitable for field measurement.

4) One time measurable large blade area (2000 * 155mm2)

5) Can store 5000 sets of data.

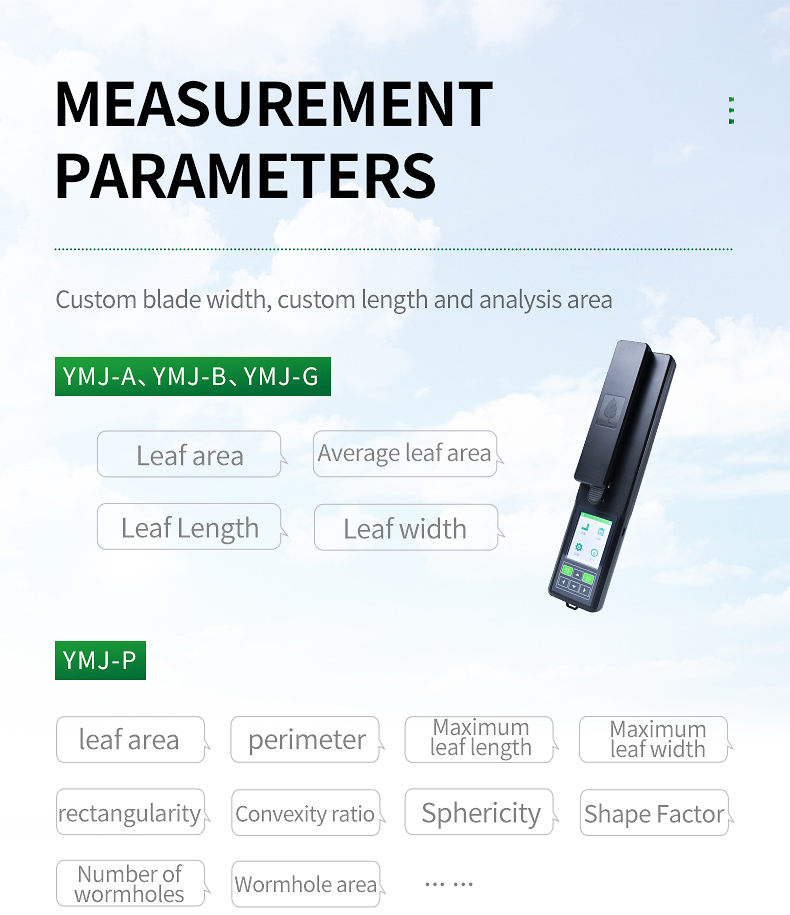

6) Multiple parameters of the blade can be measured, including leaf area, leaf length, and leaf width.

7) Built in calibration module, users can calibrate according to different usage environments

8) Communication interface: Type-C interface, which can import data into the computer. (This feature is only available for B and G models)

9) GPS positioning: Integrated with high-speed GPS positioning module, the uploaded data comes with time and latitude and longitude information, making it easier to process data more effectively. (This feature is only available for G-type)

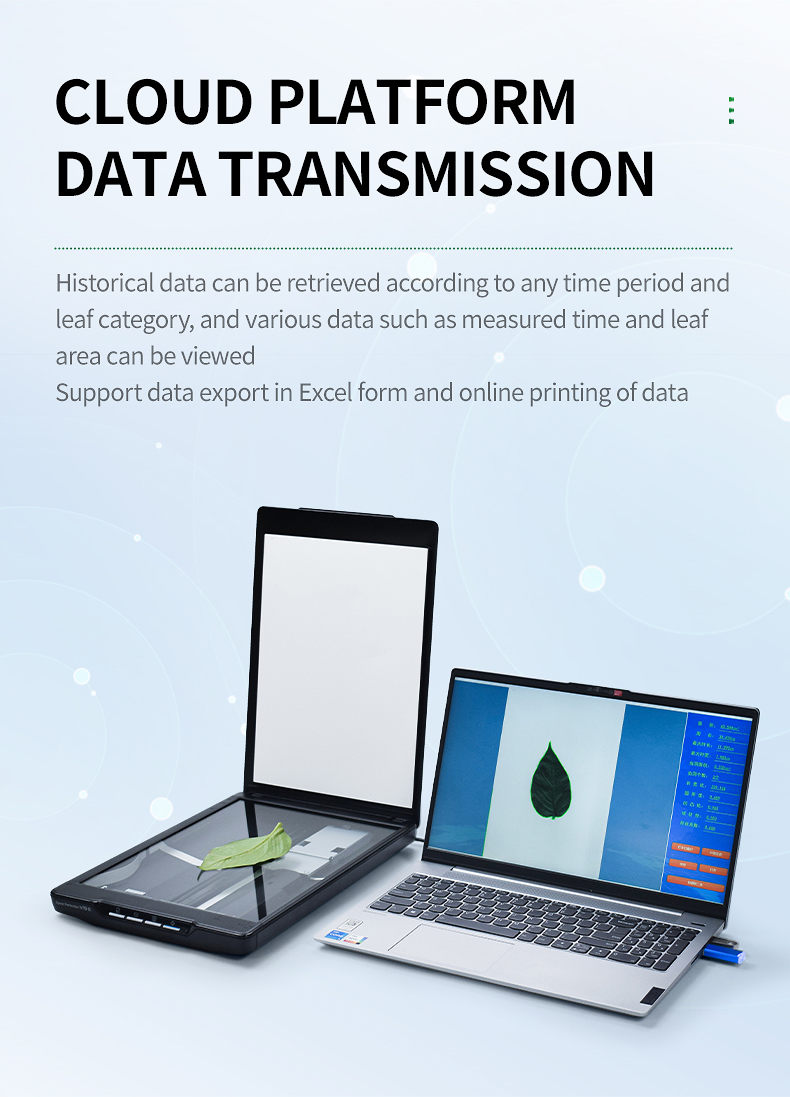

10) 4G wireless transmission: Measurement data can be uploaded to the cloud platform in real time, and measurement time, blade area, and other data can be viewed. Line chart analysis can be performed on different parameters, and data can be exported in EXCEL form. Data can be printed online, and data can be displayed according to the selected time period. Data can be analyzed in tables, line charts, and downloaded online. (This feature is only available for G-type)
