Vegetation is the cornerstone of the Earth's ecosystem, and its growth directly affects agricultural yield, carbon sequestration capacity, and ecological balance. Leaf Area Index (LAI), as a key parameter for measuring the total area of plant leaves per unit surface area, is a core indicator for evaluating vegetation photosynthetic efficiency, canopy structure, transpiration, and biomass. Accurately obtaining LAI data is crucial for optimizing agricultural management and predicting ecosystem productivity.
Core principle: Dialogue between Light and Leaves
The core working principle of the leaf area index meter is based on the interception of photosynthetically active radiation (PAR, 400-700nm) by the vegetation canopy. The instrument works together through two sets of precision sensors:
Probe sensor array: extends into the bottom of the canopy and is equipped with up to 80 high-sensitivity PAR sensors, which densely measure the photon flux density (unit: μ mol/㎡ s) of light transmitted through the canopy to the ground.
External sensors: independently placed in an open area above the canopy, continuously monitoring the incident PAR value at the top of the canopy.
By accurately calculating the ratio of incident PAR above the canopy to transmitted PAR below the canopy, combined with vegetation extinction theory models (such as Beer Lambert's law) and instrument built-in zenith angle information and GPS positioning data, the leaf area index (LAI) of the target area can be efficiently and non destructively calculated. This method breaks through the limitations of traditional destructive sampling (such as leaf picking measurement) and achieves in-situ, rapid, and large-scale dynamic monitoring.
Technical advantages: precision, efficiency, and intelligence
The modern advanced leaf area index instrument integrates multiple key technologies to solve industry pain points:
High density, wide range sensing: 80 probe rod sensors+1 external PAR sensor combination, covering a super large range of 0-4000 μ mol/㎡ s, with a resolution of 1 μ mol/㎡ s, ensuring the accuracy and stability of data in complex lighting environments.
Intelligent collection and battery life: Supports automatic collection at intervals of 1-60 minutes (up to 999 times) and real-time manual collection, flexibly responding to different research needs. Equipped with high-capacity 18650 lithium batteries (2 * 3500mAh) and intelligent power management, it ensures worry free long-term outdoor operations.
Convenient data management: 16GB large capacity SD card local storage, combined with optional wireless upload function, realizes real-time cloud synchronization and web visualization of measurement data (PAR value, LAI value, zenith angle, GPS), greatly improving data acquisition and management efficiency.
Integrated and sturdy design: The probe is 1 meter long, and the entire machine is only 1.28 meters long, making it lightweight and easy to carry. One click switch between Chinese/English interface, suitable for different user groups. Wide working environment (0 ° C-60 ° C, 100% RH), fearless of harsh outdoor conditions.
Application scenarios and value
Precision agriculture: Optimize crop planting density, water and fertilizer management strategies, evaluate the light energy utilization efficiency of different varieties/cultivation modes, accurately predict yield, and achieve cost savings and efficiency improvement.
Ecological research and forestry: monitoring the productivity, carbon sink dynamics, phenological changes of ecosystems such as forests and grasslands, evaluating ecological restoration effects, and providing key data for climate change research.
Horticulture and Facility Agriculture: Guide the layout of crops in greenhouses, supplement light strategies, and maximize the utilization of light resources.
Environmental monitoring: Evaluate the impact of changes in vegetation coverage on soil and water conservation and microclimate regulation.
Industry pain point terminator
Traditional LAI acquisition methods, such as empirical estimation, destructive sampling, and expensive complex equipment, commonly suffer from low efficiency, vegetation damage, poor spatiotemporal continuity of data, complex operations, and high costs. The professional leaf area index instrument, with its non-destructive, fast, in-situ, high-precision, and intelligent characteristics, has completely changed this situation and become an essential tool for scientific research and production.
Choose Hengmei Technology to conquer new heights in leaf area index

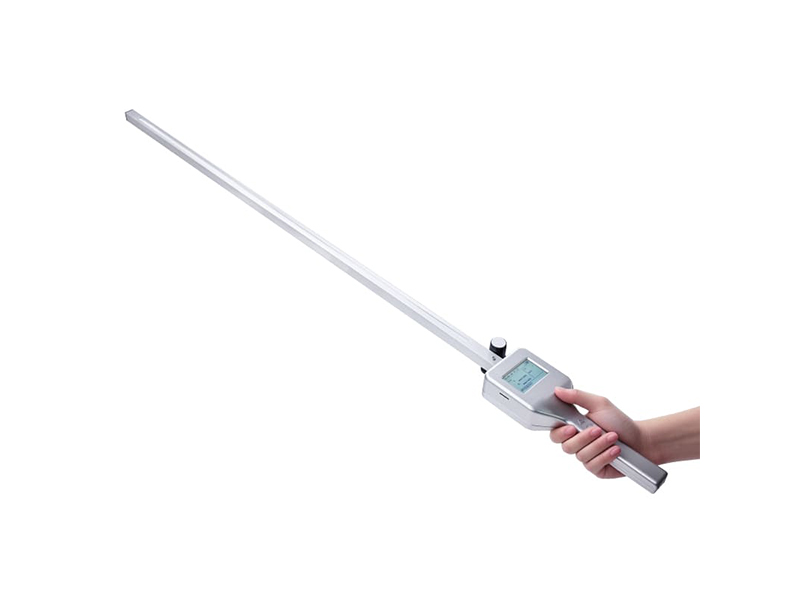

As a deep cultivator in the field of intelligent monitoring of agriculture and ecological environment, Shandong Hengmei Electronic Technology Co., Ltd. has always been committed to providing customers with accurate, reliable, and efficient solutions. The HM series leaf area index instrument we have launched integrates all the advanced technological advantages mentioned above:
Equipped with an 80 pole probe and an external high-precision PAR sensor array, it has a wide measurement range and accurate and reliable data.
Intelligent dual-mode collection (automatic/manual)+dual storage (SD card+optional wireless transmission), worry free data management.
Integrated portable design, ultra long battery life, Chinese English interface, suitable for harsh outdoor environments.
Provide a complete solution from devices to data services.
The Hengmei Leaf Area Index is a powerful tool and trusted partner for crop physiology research, precision agriculture practice, ecosystem monitoring, and smart agriculture and forestry construction. Choose Hengmei to make the value of each leaf clear and visible, empowering green growth!
