Tree rings are not only the imprints of tree growth, but also the "natural archives" that record environmental changes. From climate change to forest ecology, from ancient ecological reconstruction to forestry resource management, annual ring data provides irreplaceable direct evidence for scientific research. However, traditional tree ring analysis relies on manual visual measurement, which has pain points such as low efficiency, poor accuracy, and untraceable data. The birth of the tree ring analysis and measurement instrument is precisely to break through this bottleneck and achieve accurate collection and analysis of ring data through intelligent means, providing reliable basis for scientific research and production.
Technical principle: full process analysis from sample to data
The tree ring analysis and measurement instrument achieves automation and standardization of ring research by integrating image acquisition, intelligent recognition, and data analysis technologies. The core workflow is as follows:
1. Sample collection and preprocessing
Support imaging analysis of disc-shaped wood sections (such as tree discs) or columnar growth cone samples.
Equipped with a tree core locator to ensure accurate placement of columnar samples and avoid measurement errors caused by sample tilt.
2. High precision image acquisition

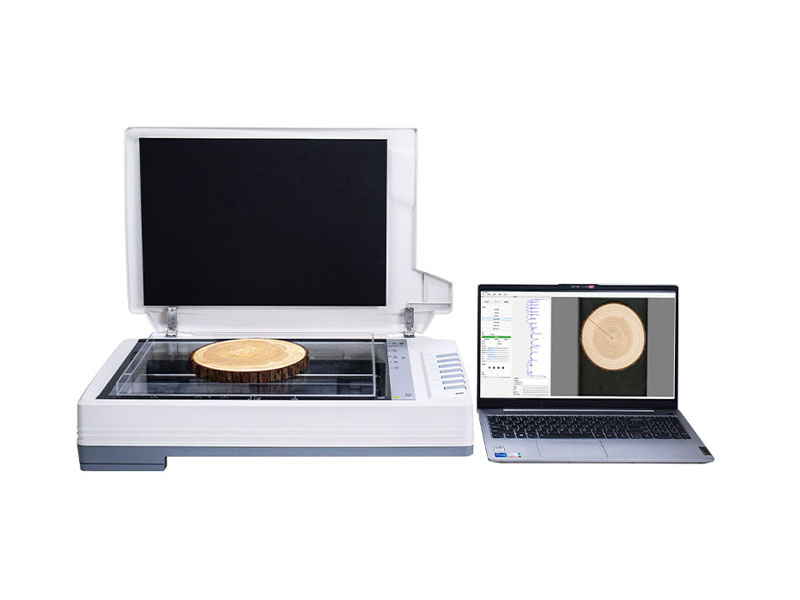

The device is compatible with multiple professional scanners, supporting A3 format (31 × 44cm) scanning, with a maximum resolution of 1600 × 1600dpi (standard) or 1800 × 3600dpi (optional).
The recognition accuracy is 0.016mm (standard) or 0.011mm (optional), which can clearly capture extremely fine tree rings below 0.2mm.
3. Intelligent Image Processing and Analysis
Automatic recognition of tree rings: an image segmentation algorithm based on deep learning that automatically marks the boundaries of tree rings and supports manual correction and missing pixel addition.
Early and late wood differentiation: Through color channel analysis, distinguish between early wood (wide and light) and late wood (narrow and dark), and calculate their width ratio.
Multi path measurement: supports measuring the width of tree rings along any angle and straight line direction, and the path can be dynamically adjusted to adapt to complex tree ring trends.
4. Data statistics and visualization
Automatically calculate parameters such as tree cross-sectional area, perimeter, and age, and generate visual charts such as tree ring width distribution histograms and growth trend curves.
Support batch processing of multiple samples, data can be exported to Excel, JSON, CSV and other formats, and professional analysis reports can be generated with just one click.
Technical advantages: accuracy, intelligence, practicality
1. High precision measurement
Resolution of 0.011mm (optional), supports 1GB ultra high precision scanning image analysis, ensuring sub millimeter accuracy in measuring tree ring width.
2. Intelligent processing
Automatic annual ring recognition and boundary determination, reducing manual intervention; Support manual calibration to ensure the accuracy of * * * * data.
Built in intelligent algorithms can distinguish the annual ring characteristics of different tree species (such as coniferous forests and broad-leaved forests) and adapt to diverse research needs.
3. Flexibility and practicality
Support the measurement of multi segment complex shaped samples of tree rings, suitable for special situations such as core fracture and ring distortion.
Chinese English bilingual interface, easy to operate, ordinary personnel can get started in 30 minutes.
4. Data traceability
Automatically saves original images and measurement paths, supports barcode gun input of sample numbers, and data can be traced back to specific samples and collection times.
Industry pain points and solutions
Pain point 1: Low efficiency of manual measurement, prone to data errors
Solution: The device supports batch scanning and automatic analysis, reducing single sample processing time from 30 minutes to 5 minutes and achieving an accuracy rate of over 99%.
Pain point 2: Insufficient ability to process complex samples
Solution: Supports multi segment sample splicing and dynamic path adjustment, can handle broken and twisted tree rings, and improves data integrity by 80%.
Pain point 3: Difficulty in data sharing and traceability
Solution: Built in cloud data sharing function, supporting scanning code to query sample information, ensuring data traceability to specific collection points.
Pain point 4: Poor compatibility with multiple standards
Solution: Support user-defined analysis parameters (such as annual ring width threshold, early and late wood differentiation standards) to adapt to different research needs.
The tree ring analysis and measurement instrument is not only a scientific research tool, but also a core equipment for promoting the intelligent transformation of forestry and ecology fields. Its advantages of high precision, intelligence, and flexibility make it a "standard configuration" in fields such as climate change research, forest ecological monitoring, and paleoecological reconstruction. For scientific research institutions, forestry enterprises, and testing departments, choosing a professional and reliable tree ring analysis and measurement instrument is a key step in improving research efficiency and optimizing resource management.
