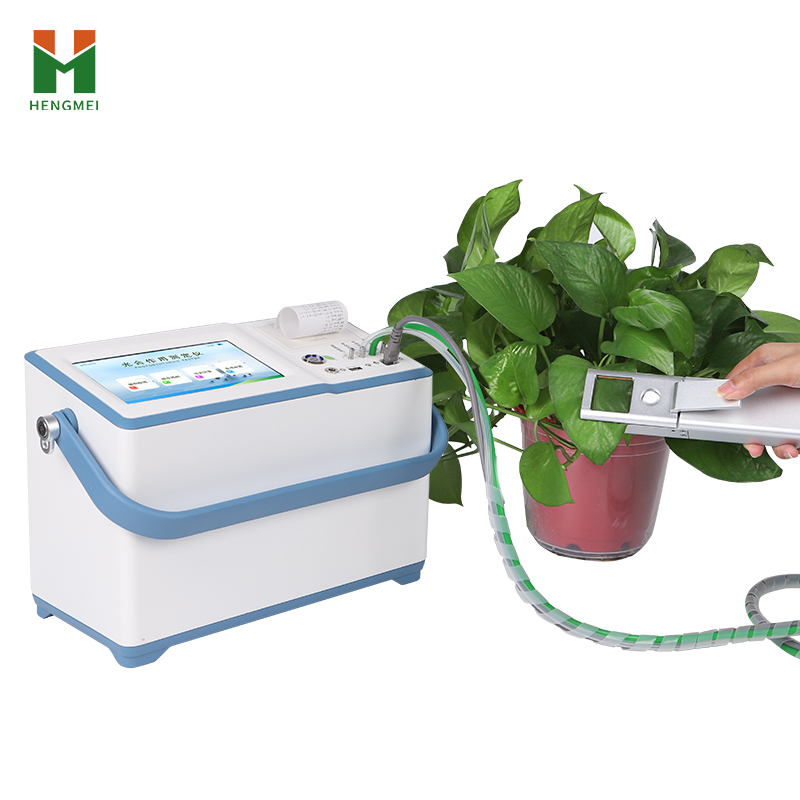

Portable photosynthesis analyzer is a core equipment in the field of plant physiology and ecology research, which can measure real-time photosynthesis, transpiration, and related environmental parameters at the leaf level. The instrument adopts non diffusive infrared CO2 analysis technology and multi-sensor fusion design, which can synchronously obtain 15 key physiological indicators, providing accurate data support for plant growth physiology, stress physiology research, and agricultural production optimization.
The importance of portable photosynthesis analyzer
Plant photosynthesis is the fundamental process of energy conversion and material production. Traditional measurement methods have limitations such as complex operation, data lag, and significant environmental interference. The portable photosynthesis analyzer has achieved in situ field measurements of key parameters such as photosynthetic rate (Pn), transpiration rate (Tr), stomatal conductance (Gs), and intercellular CO2 concentration (Ci) through an integrated design, solving the problem of disconnection between laboratory measurements and actual situations, and becoming a "mobile laboratory" for modern plant physiology research.
Working principle and technological advantages
1. Core detection principle
Dual wavelength infrared CO2 analysis: Non diffusive infrared sensors are used to detect changes in CO2 concentration and calculate photosynthetic rate. Temperature compensation and pressure correction are added to ensure data accuracy.
Multi parameter synchronous monitoring: Integrated sensors for temperature and humidity, photosynthetically active radiation (PAR), atmospheric pressure, etc., real-time recording of environmental factors and automatic data correction.
Intelligent air path design: Open/closed air paths are optional to adapt to different measurement environments and avoid prolonged blade sealing time affecting physiological status.
2. Technical advantages
High precision measurement: CO2 measurement error ≤ 3% FS, temperature accuracy ± 0.2 ℃, PAR error ≤ 5 μ mol/(m ² · s), meeting scientific research level requirements.
Intelligent operation: The Android system is paired with a 7-inch touch screen, which displays measurement curves in real-time and supports custom experiment notes.
Powerful data processing: Built in 16GB storage, supports multiple sets of data comparison and analysis, generates professional charts such as photosynthesis curves.
Long term battery life: The 8000mAh lithium battery supports continuous operation for 10-12 hours, meeting the needs of all day field measurements.
Cloud platform integration: Data is wirelessly transmitted to the cloud platform via WiFi, supporting long-term data management and visual analysis.
Application Fields and Solutions
1. Application scenarios
Crop Physiology Research: Comparison of Photosynthetic Efficiency of Different Varieties and Screening of Breeding Materials.
Research on Adversity Physiology: Plant Physiological Responses under Conditions of Drought, High Temperature, Salt Stress, etc.
Ecosystem monitoring: assessment of carbon sequestration functions in ecosystems such as forests and grasslands.
Precision agriculture: optimizing irrigation and fertilization schemes to improve water use efficiency (WUE).
2. Typical solutions
Measurement of photosynthetic response curve: Automatically generate a photosynthetic curve to determine the light saturation point and compensation point.
Long term monitoring research: Cloud platform data management, supporting comparative analysis of long-term monitoring data from multiple locations.
Teaching demonstration application: Intuitively display changes in photosynthetic process parameters for plant physiology teaching.
The portable photosynthesis analyzer combines infrared analysis technology with intelligent hardware to achieve accurate and efficient field measurement of plant photosynthesis, solving the environmental limitations and cumbersome operation problems of traditional measurement methods
