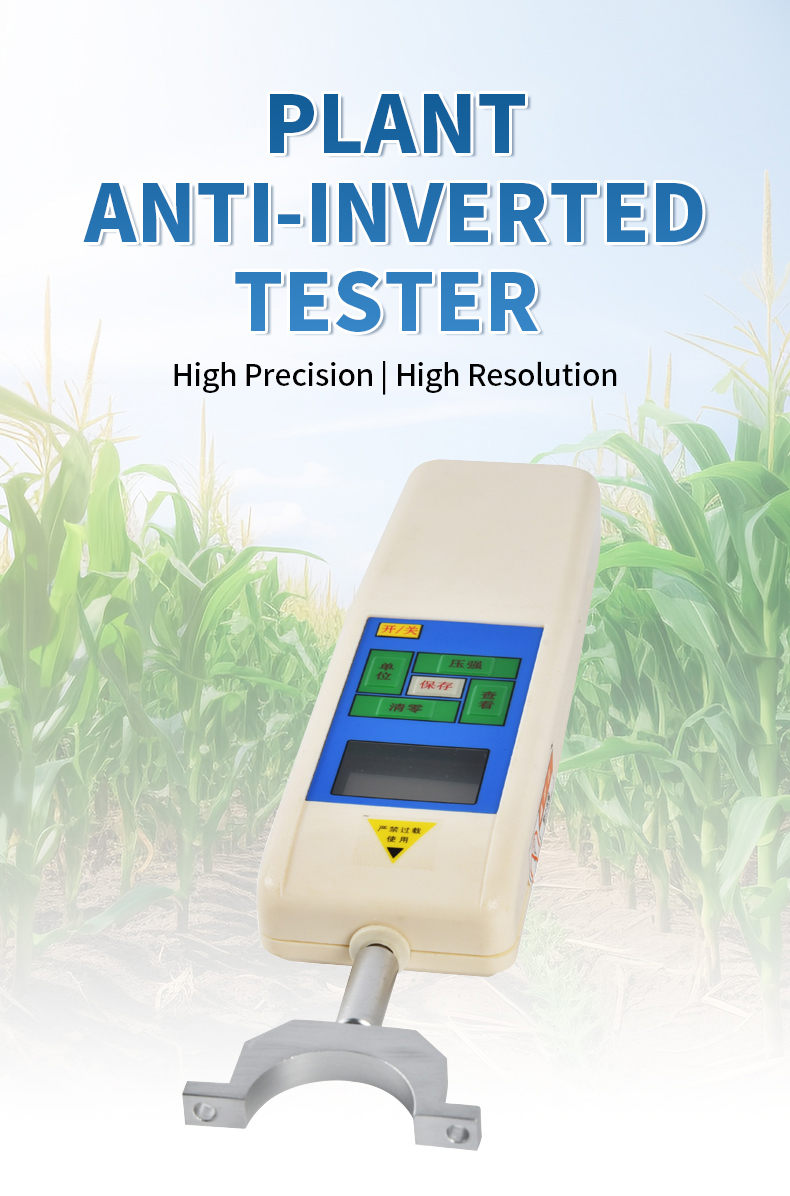

Plant Lodging Resistance Tester

Purpose:

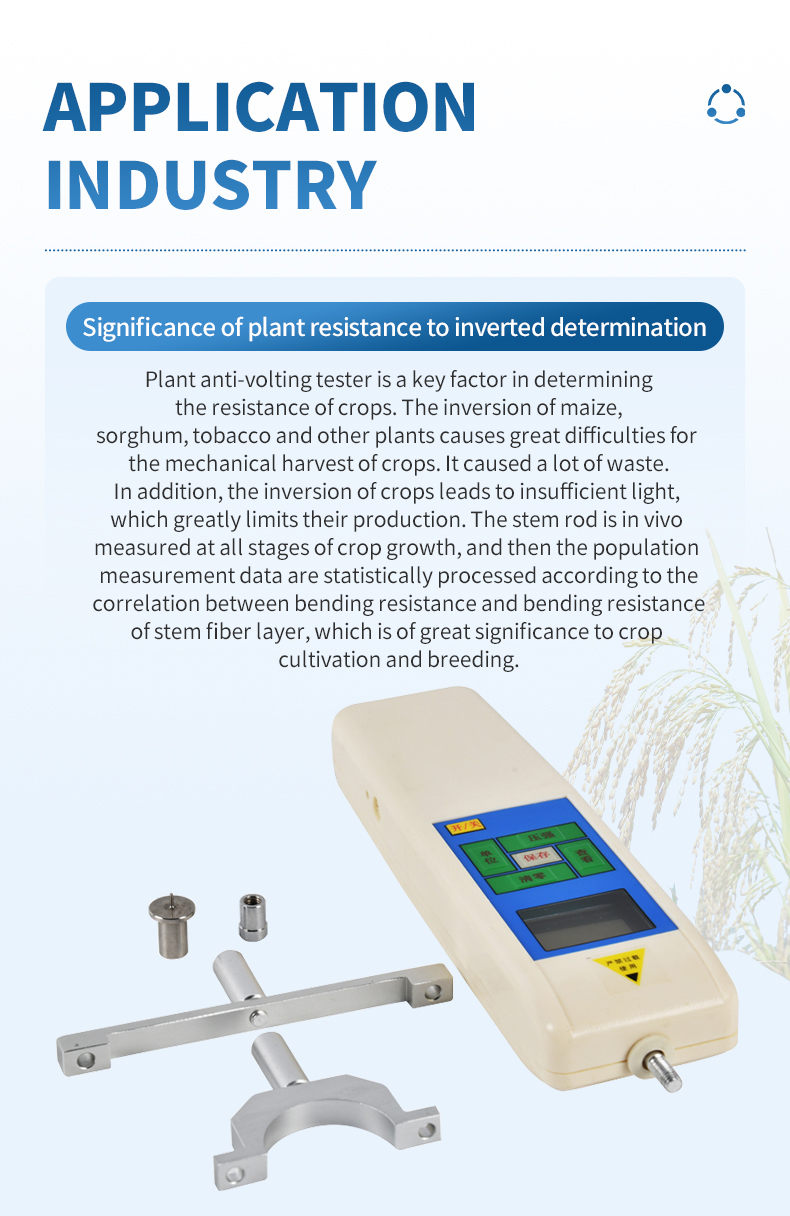

The plant lodging resistance tester is a key factor in determining the lodging resistance of crops. The lodging of plants such as corn, sorghum, and tobacco poses great difficulties for mechanical harvesting of crops. Causing a significant amount of waste. In addition, the lodging of crops leads to insufficient light, greatly limiting their production. Conducting in vivo measurements of crop stems at various stages of growth, and then statistically processing population measurement data based on the correlation between stem fiber layer bending resistance and lodging resistance, is of great significance for crop cultivation and breeding.

Functional Features

1. High precision and high resolution.

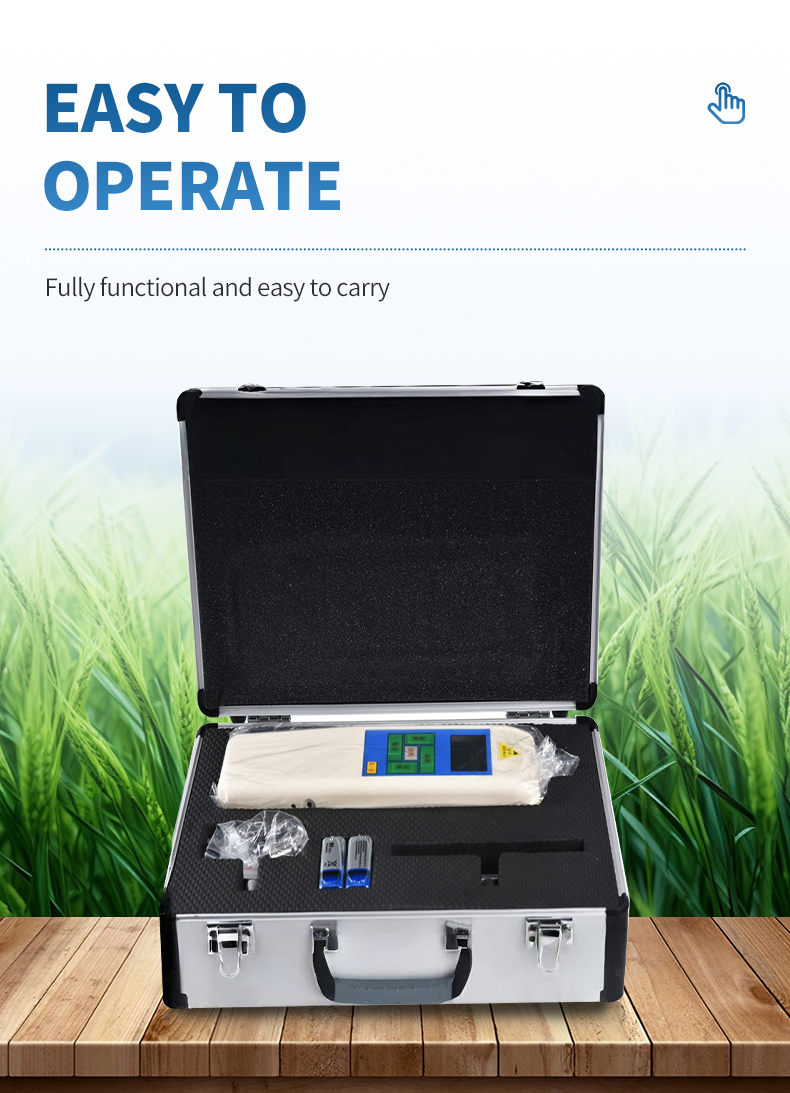

2. It has the characteristics of simple operation, comprehensive functions, and easy portability.

3. Two measurement units, pressure (Kpa) and pressure (N), are available for selection and mutual conversion.

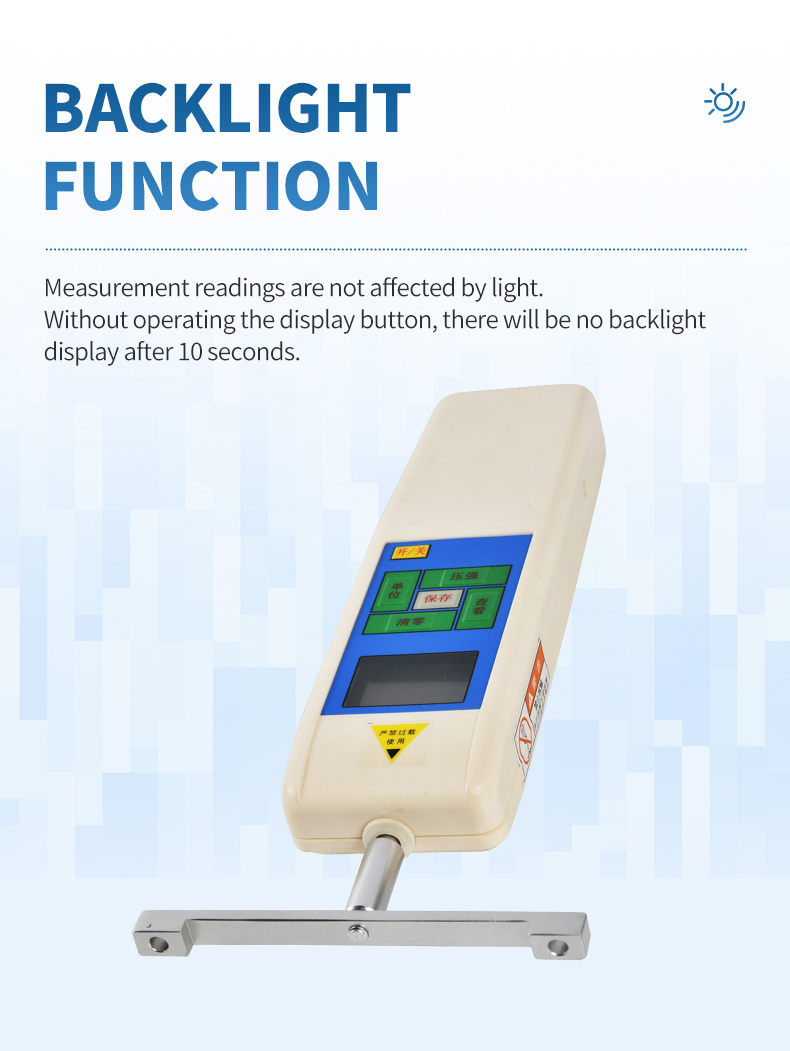

4. Equipped with backlight function. (Without operating the monitor buttons, there will be no backlight display after 10 seconds)

5. It has green environmental protection and automatic shutdown function. (The monitor will automatically shut down after 10 minutes without operating the monitor buttons)

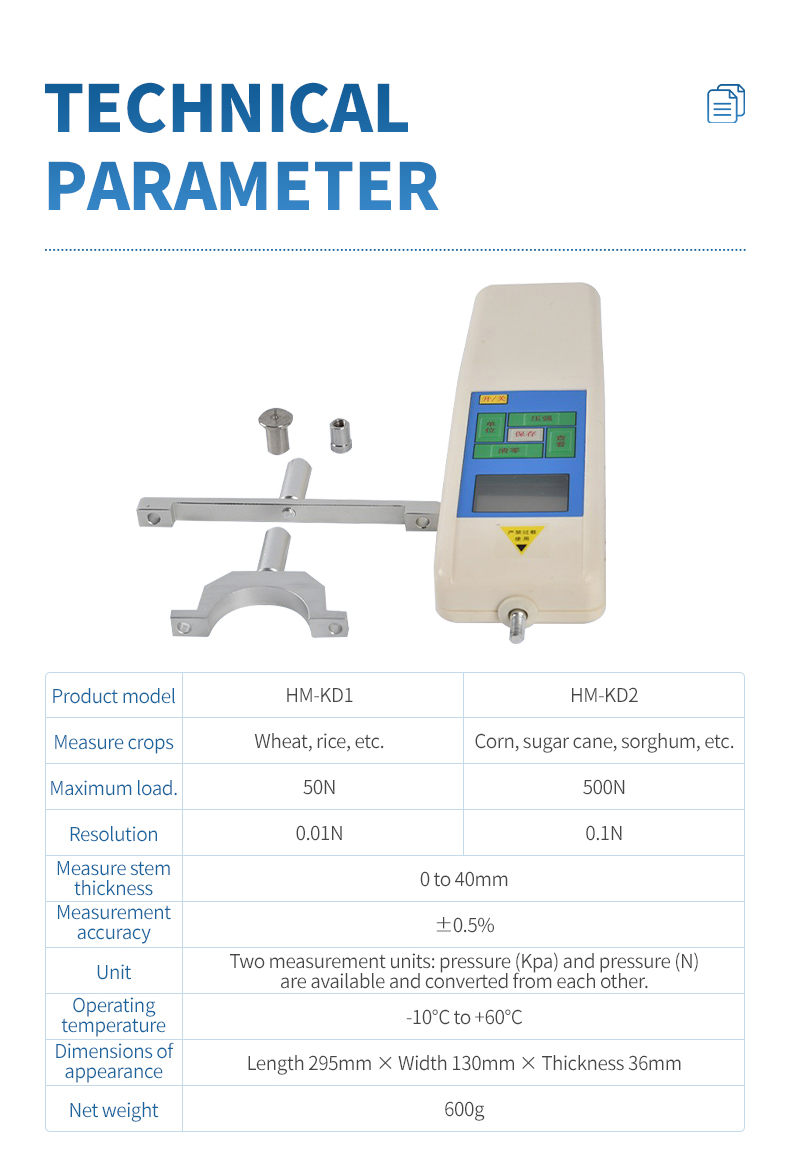

Technical parameters

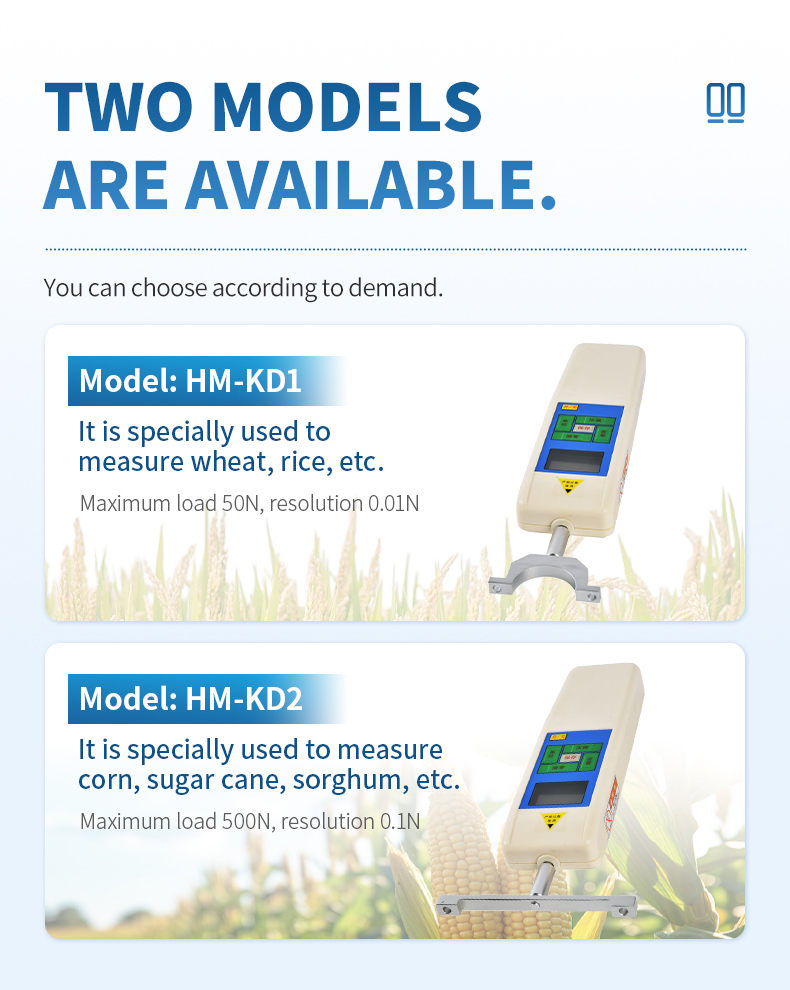

1. Model: KD1; KD2。

2. High load: KD1 type 50N; KD2 type 500N.

3. Resolution: KD1 type 0.01N; KD2 type 0.1N.

4. Measure stem thickness: 0-40mm.

5. Measurement accuracy: ± 0.5%.

6. Unit: Kpa, N.

7. Operating temperature: -10 ℃ to+60 ℃;

8. Dimensions: Length 295mm x Width 130mm x Thickness 36mm

9. Net weight:~600g

Note: KD1 type is specifically designed for measuring wheat, rice, etc The KD2 type is specifically designed for measuring corn, sugarcane, sorghum, and other crops.
