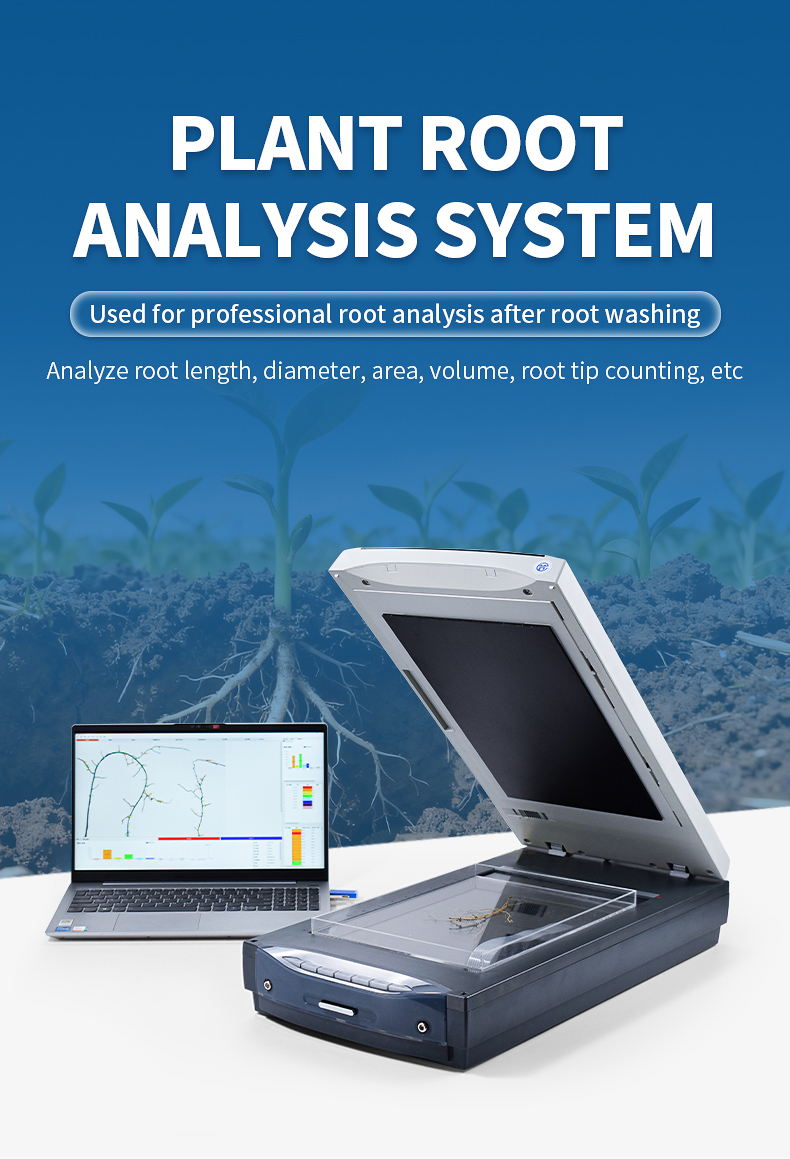

Plant Root Analysis System

Purpose:

The Plant Root Analysis System is designed as an automatic analysis system for quick photography and multi parameter, batch analysis of root systems with a diameter of 0.5mm or more after washing. The entire system consists of a high-speed scanner, analysis software (PC end), and a computer (self provided), and its imaging speed is 20 times faster than the scanning model.

Main performance indicators:

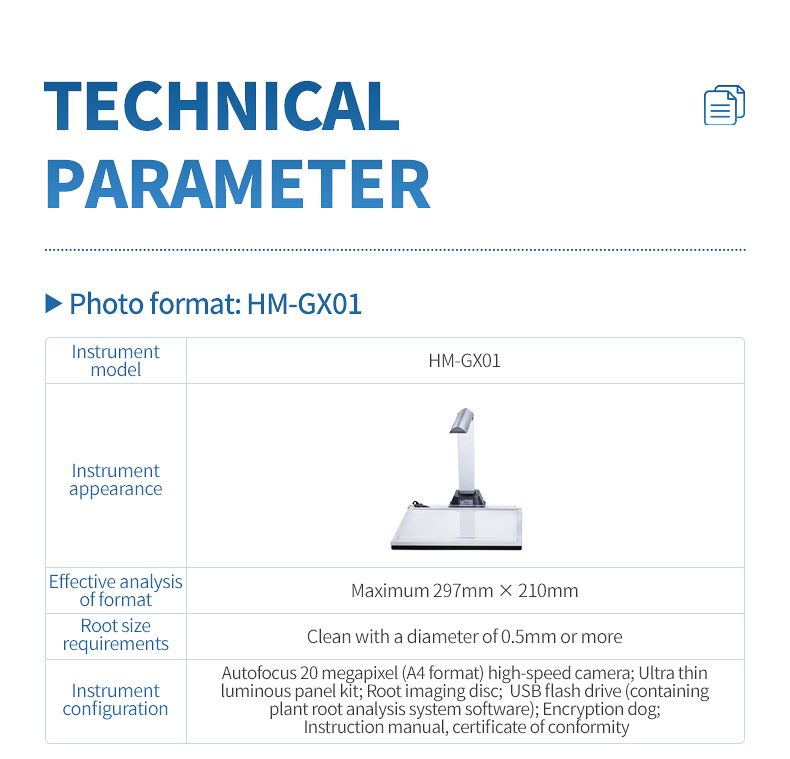

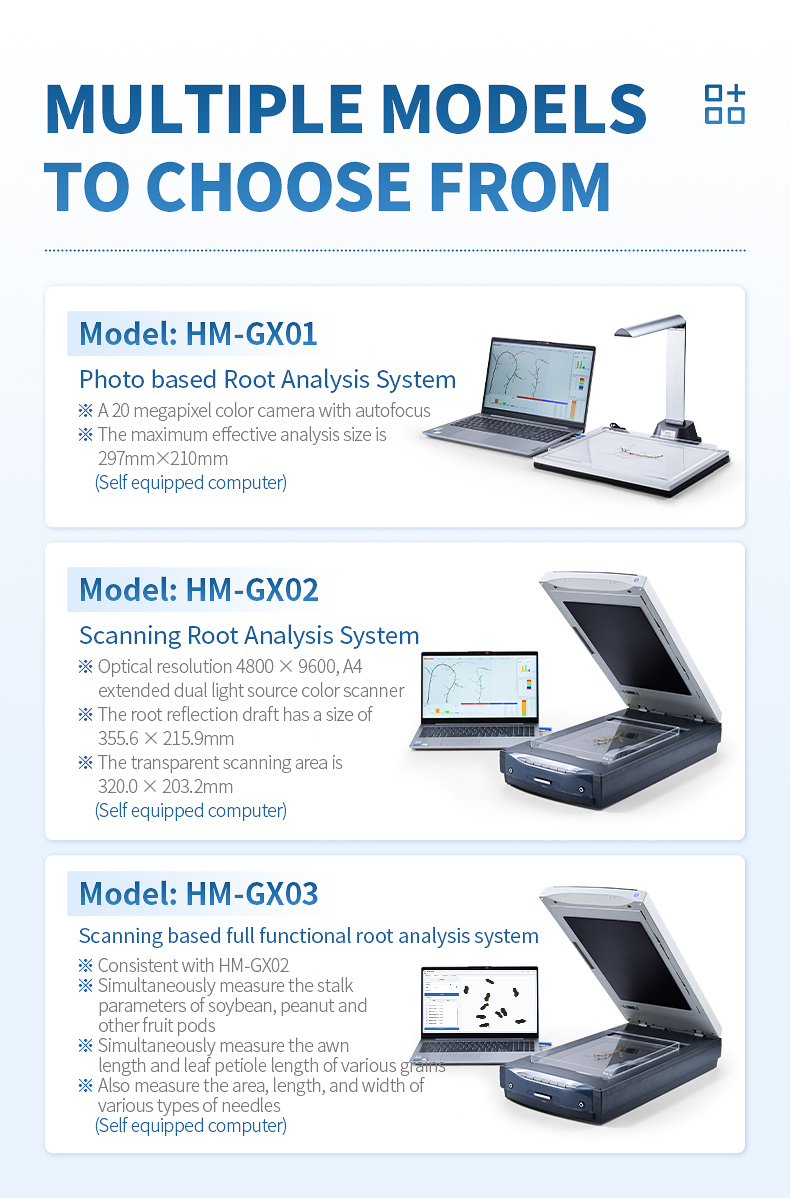

1. A 20 megapixel color camera with autofocus. Effective analysis format * large 297mm × 210mm. Especially suitable for rapid automatic analysis and measurement of root systems with a diameter of 0.5mm or more.

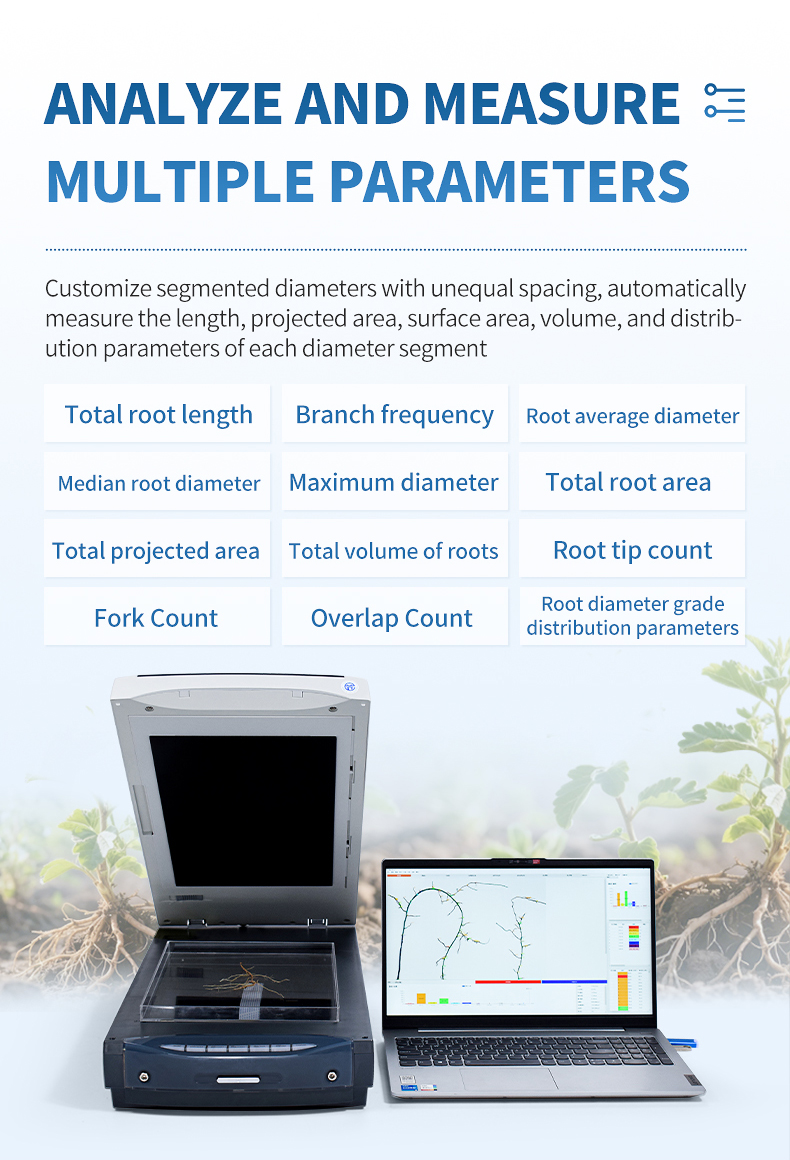

2. Analyzable measurement:

(1) Root length;

(2) Branch frequency;

(3) Root average diameter;

(4) Median root diameter;

(5) Large diameter;

(6) Total root area;

(7) Total projected area;

(8) Total volume of roots;

(9) Root tip counting;

(10) Fork counting;

(11) Overlap counting;

(12) Root diameter grade distribution parameters;

(13) Customizable segmented diameters with unequal spacing, automatically measuring the length, projected area, surface area, volume, and distribution parameters of each diameter segment.

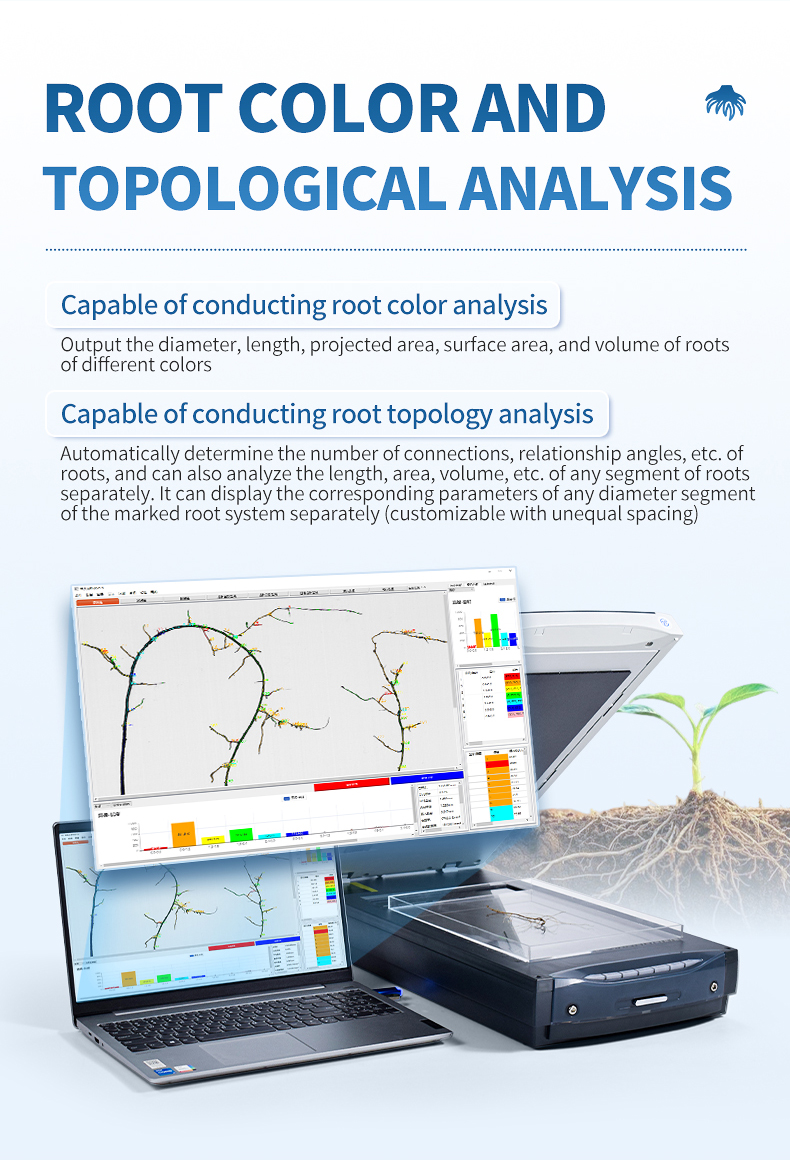

(14) Capable of conducting color analysis of root systems, determining the number of surviving roots, and outputting the diameter, length, projected area, surface area, and volume of roots of different colors.

(15) It can perform topological analysis of the root system, automatically determine the number of connections, relationship angles, etc. of the roots, and can also automatically analyze the length, area, volume, etc. of the main root or any lateral root separately. It can display the corresponding parameters of any diameter segment of the marked root system separately (customizable with unequal spacing).

(16) The box dimension method can be used to automatically measure the fractal dimension of root systems. The proportion of rhizobium volume in the root system can be analyzed to objectively determine the contribution of rhizobium cells.

(17) Large scale fully automated root analysis, with editing and correction of various analysis result graphs.

(18) Capable of large-scale automated estimation of root biomass distribution.

(19) Analyze the characteristics of corner analysis, horizontal angle analysis, and root extraction analysis.

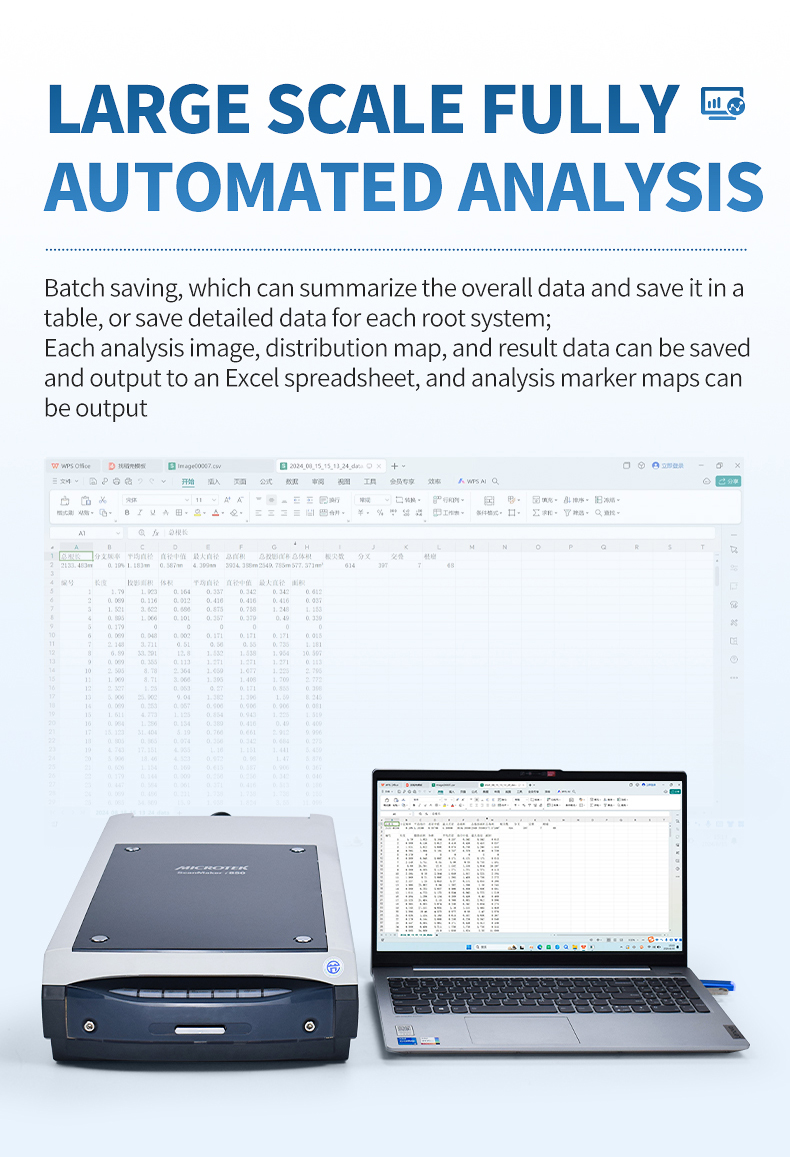

(20) Each analysis image, distribution chart, and result data can be saved and exported to an Excel spreadsheet, and analysis marker charts can be output.

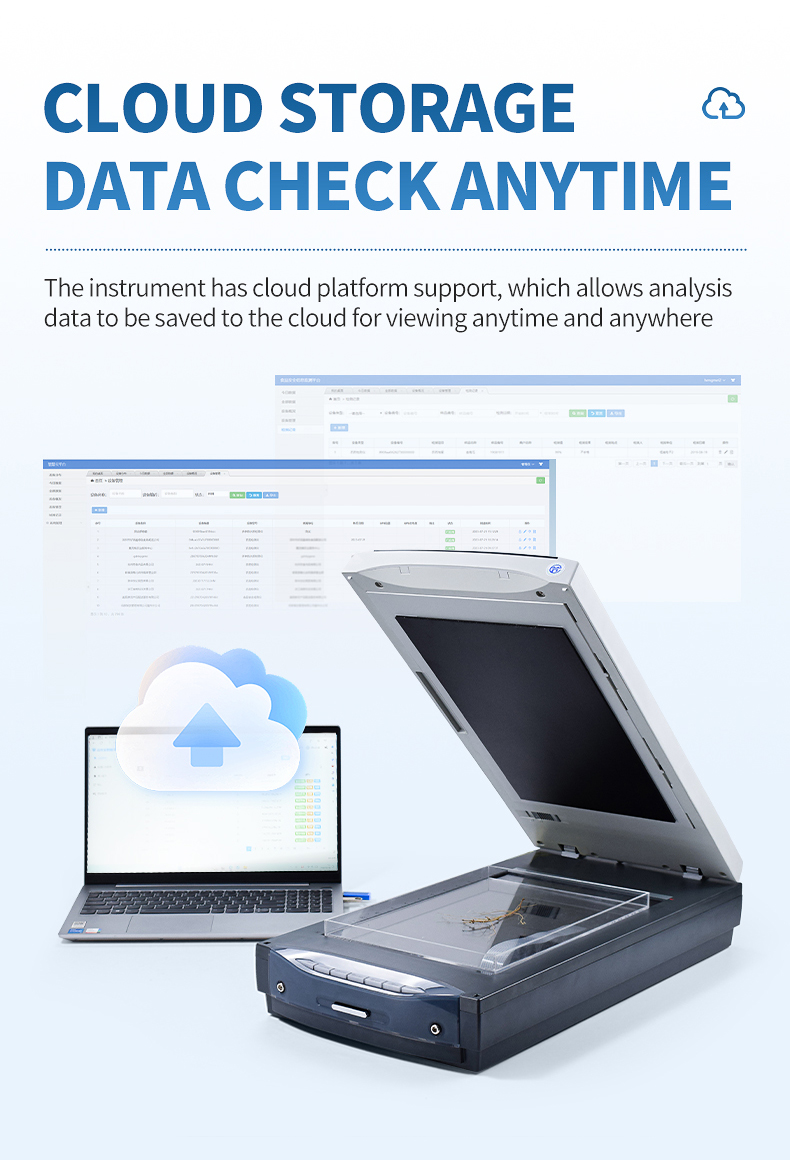

(21) The instrument has cloud platform support, which allows analysis data to be saved to the cloud for viewing anytime and anywhere.

Standard configuration:

1. 1 set of software USB flash drive and software lock for plant root analysis system

2. 1 autofocus 20 megapixel high-speed camera (A4 format)

3. One root imaging disc

4. 1 set of ultra-thin luminous panel kit

Other configurations:

1. This product requires the use of a computer, and it is recommended to choose a branded computer (Core i5 9th generation or above CPU/16GB memory/24 "color display/wireless network card, 4 or more USB 2.0 ports, running on Windows 10 Full Professional or Enterprise Edition).
