Leaf Area Index Meter

Instrument Introduction

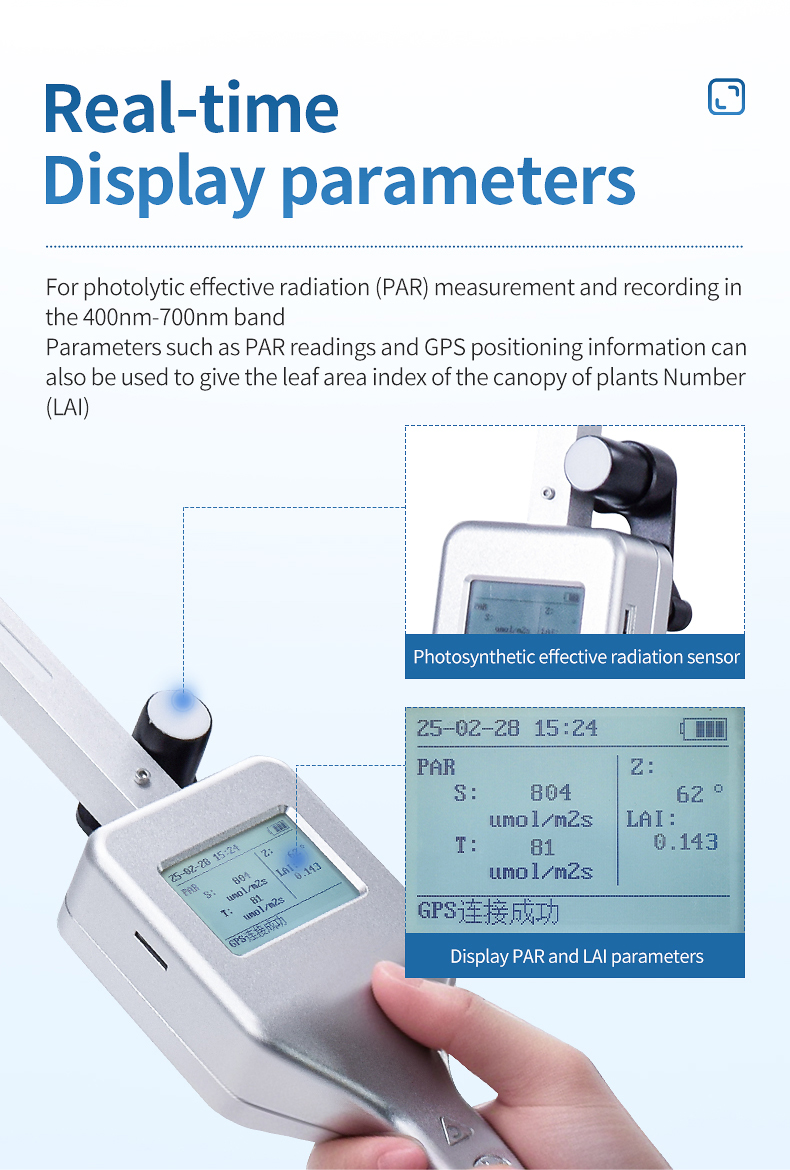

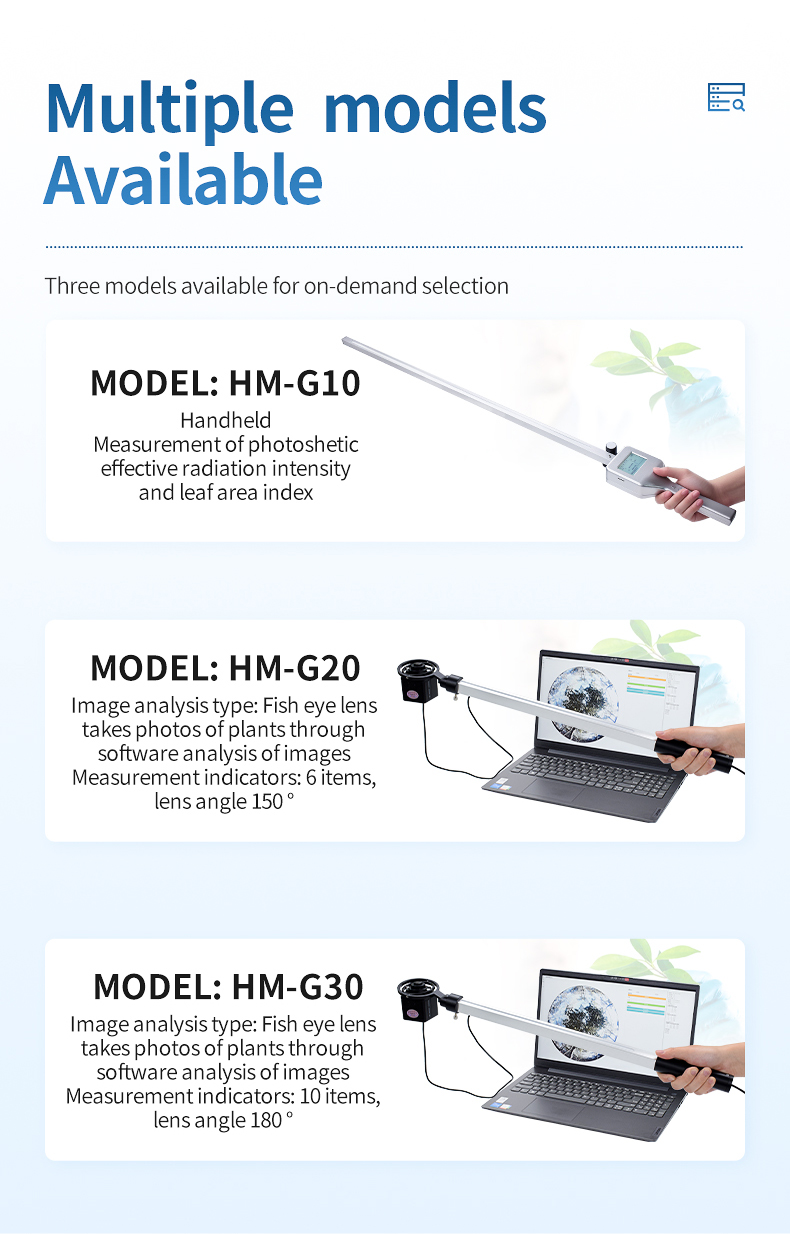

The HM-G10 Leaf Area Index (LAI) instrument can be widely used in agricultural production and research. It is used for investigating canopy light energy resources, measuring light interception in plant canopies, and studying the relationship between crop growth and development, yield and quality, and light energy utilization. This instrument is used for measuring and recording photosynthetically active radiation (PAR) in the 400nm-700nm wavelength range, with measurement values in micromoles per square meter second (μ mol ㎡/s).

Functional Features

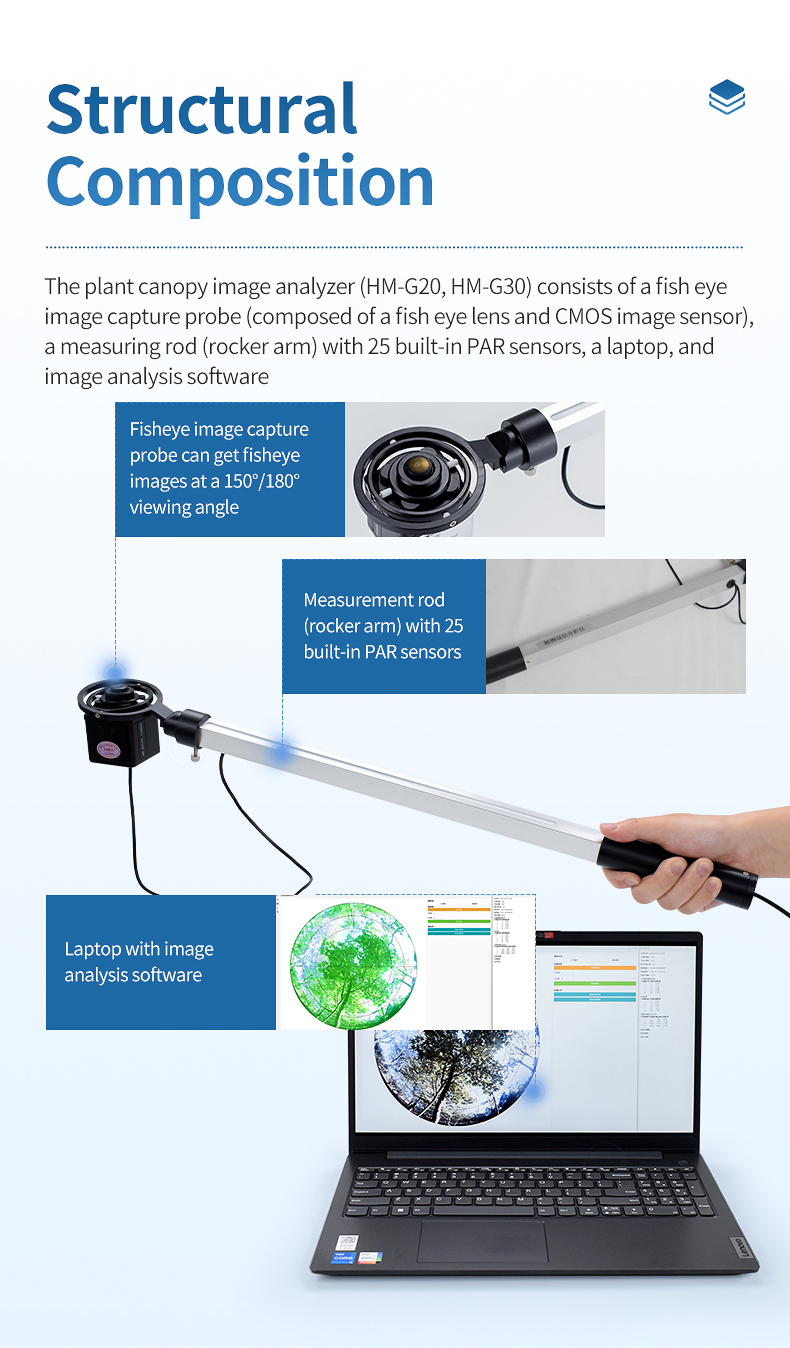

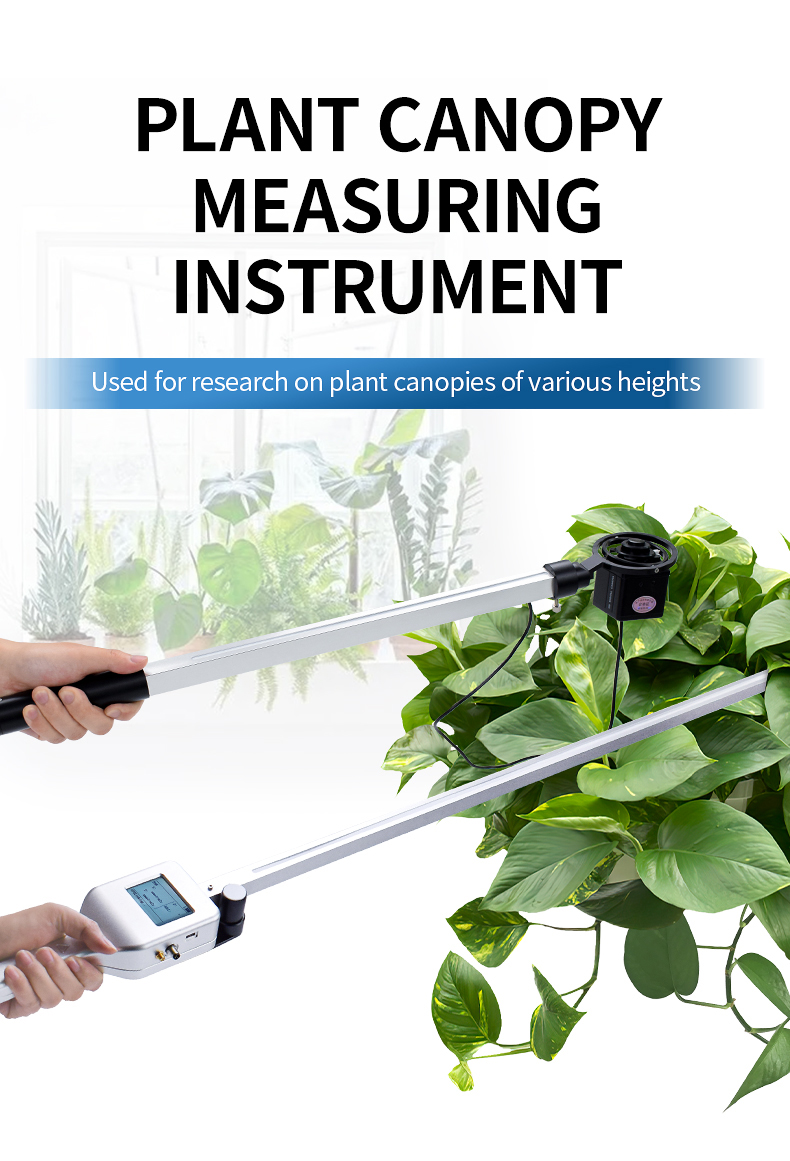

The plant canopy analyzer is an integrated design, including a LCD display screen, operation buttons, storage SD card, and measurement probe. The instrument menu is easy to operate, small in size, and convenient to carry. The storage medium is a commonly used SD card in the market, with large storage capacity and convenient data management! There is a reasonable power management plan in terms of power consumption. During the testing process, the instrument automatically enters standby mode according to the actual situation. When needed, press the wake-up button to wake up the screen and observe the actual data. There are two measurement methods: automatic and manual. Automatic measurement time interval * less than 1 minute, automatic measurement frequency * more than 99 times, manual measurement can be collected manually according to actual needs.

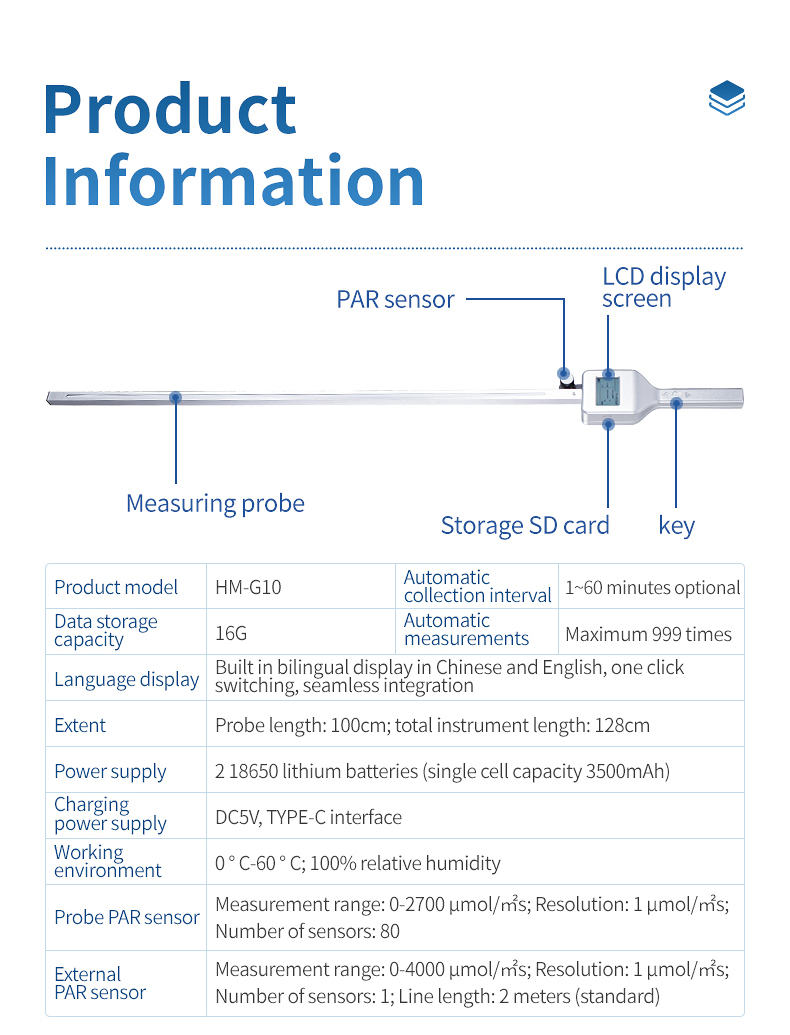

Technical Parameter

Measurement range: 0-2700 μ mol ㎡/s

Resolution: 1 μ mol ㎡/s

Response time: 10 μ s

Automatic collection interval: 1-99 minutes

Automatic collection times: 1-99 times

Data storage capacity: 2GB (standard SD card)

Total length of the instrument: 75 cm

Probe length: 50 cm

Number of sensors: 25 (standard)

Power supply: 2 No. 5 batteries

Working environment: 0 ° C-60 ° C;
