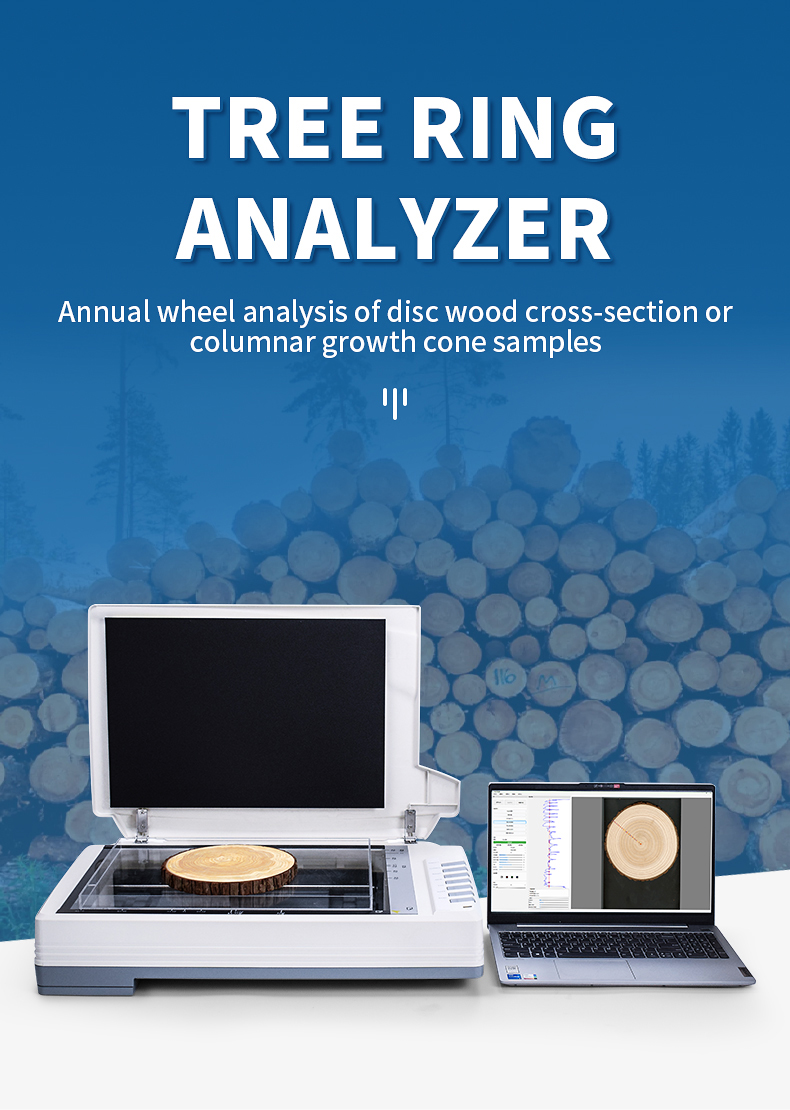

Growth ring analyzer

Brief introduction

The annual ring image analysis system is a professional tool for studying tree rings, used for analyzing the annual rings of disc-shaped wood sections or columnar growth cone samples. The system integrates functions such as image acquisition, analysis and processing, and data statistics, providing accurate data support for forestry research, ecological research, and other fields.

Main features:

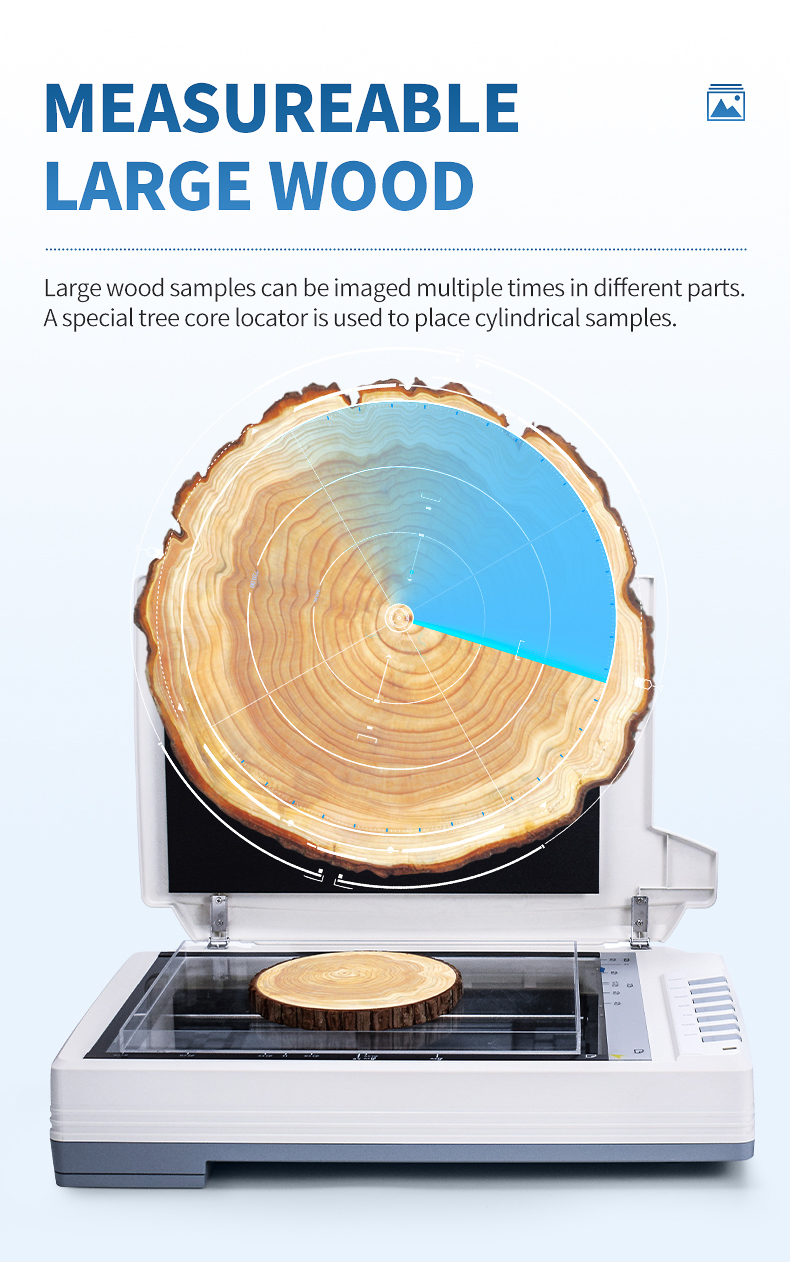

-Large wood samples can be imaged multiple times in different parts

-Special tree core locator used to place columnar samples

-The method of manually setting automatic determination of tree rings is applicable to different types of trees

-Artificially assisted image recognition correction and missing pixel addition function

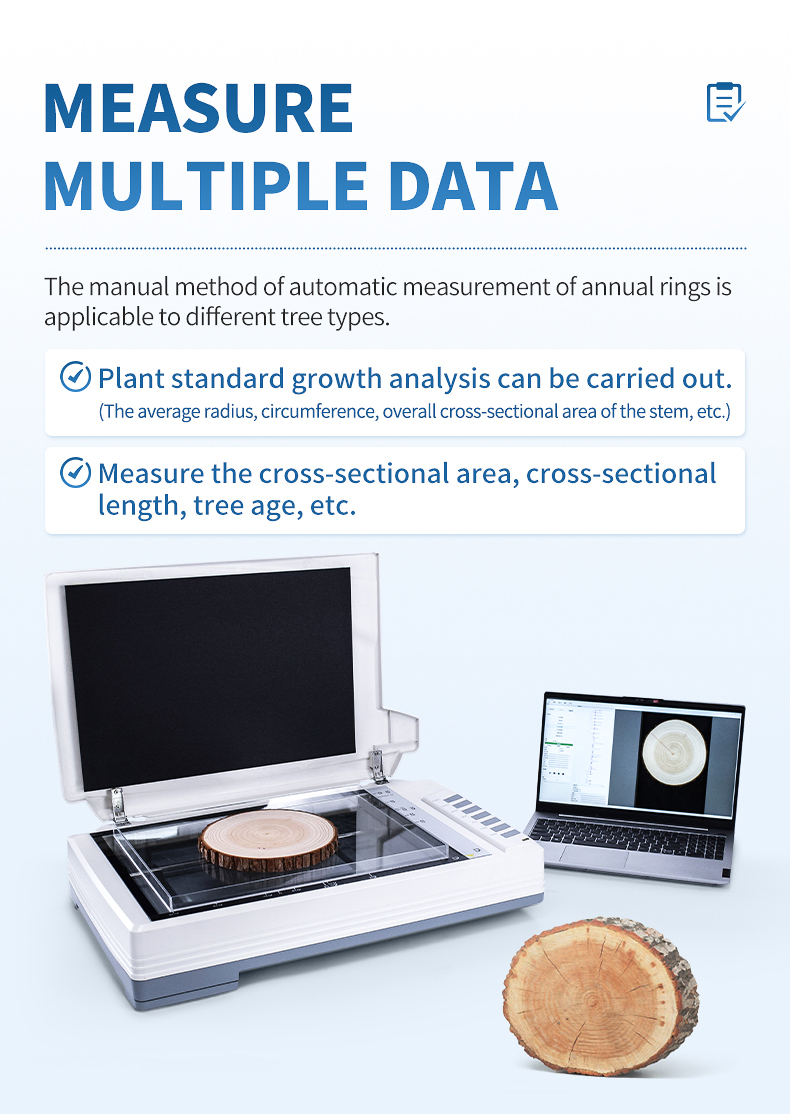

-Can perform plant standard growth analysis (average stem radius, circumference, overall cross-sectional area, etc.)

-Measurable tree cross-sectional area, cross-sectional circumference, tree age, etc

Application Fields

Widely used in:

-Climate Change Research: Analyzing Historical Climate Change through Ring Width Analysis

-Forest ecological monitoring: assessing forest health status and growth dynamics

-Paleoecological Reconstruction: Combining Chronological Methods to Reconstruct Historical Ecological Environment

-Forestry Production Management: Optimizing Forest Growth Prediction and Resource Assessment

-Wood Science Research: Analyzing the Structure and Material Characteristics of Wood

Technical parameters

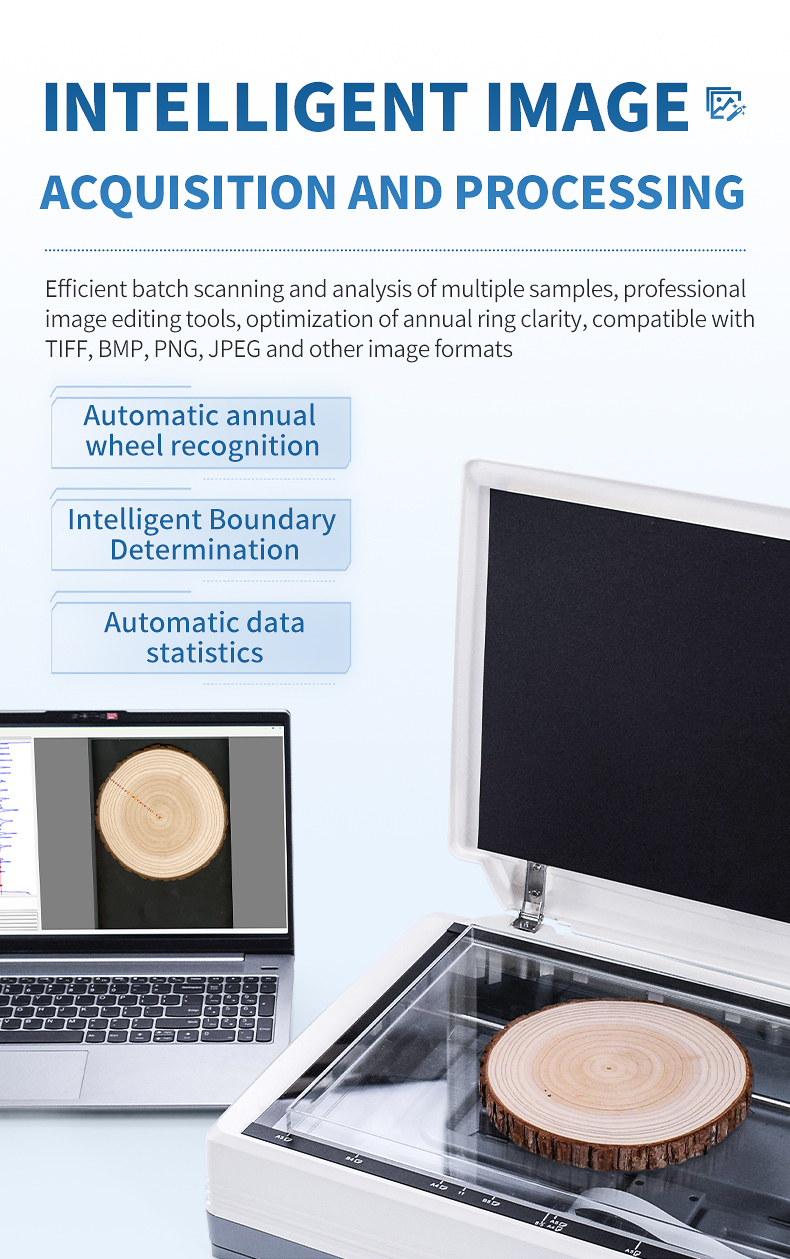

1、Image acquisition and processing

-Multi device compatibility: supports connecting various models of professional scanners

-Batch processing: efficient batch scanning and analysis of multiple samples

-Image Enhancement: A professional image editing tool that optimizes the clarity of tree rings

-Color channel analysis: Different color channels can be selected for targeted analysis

-Multi format support: compatible with various image formats such as TIFF, BMP, PNG, JPEG, etc

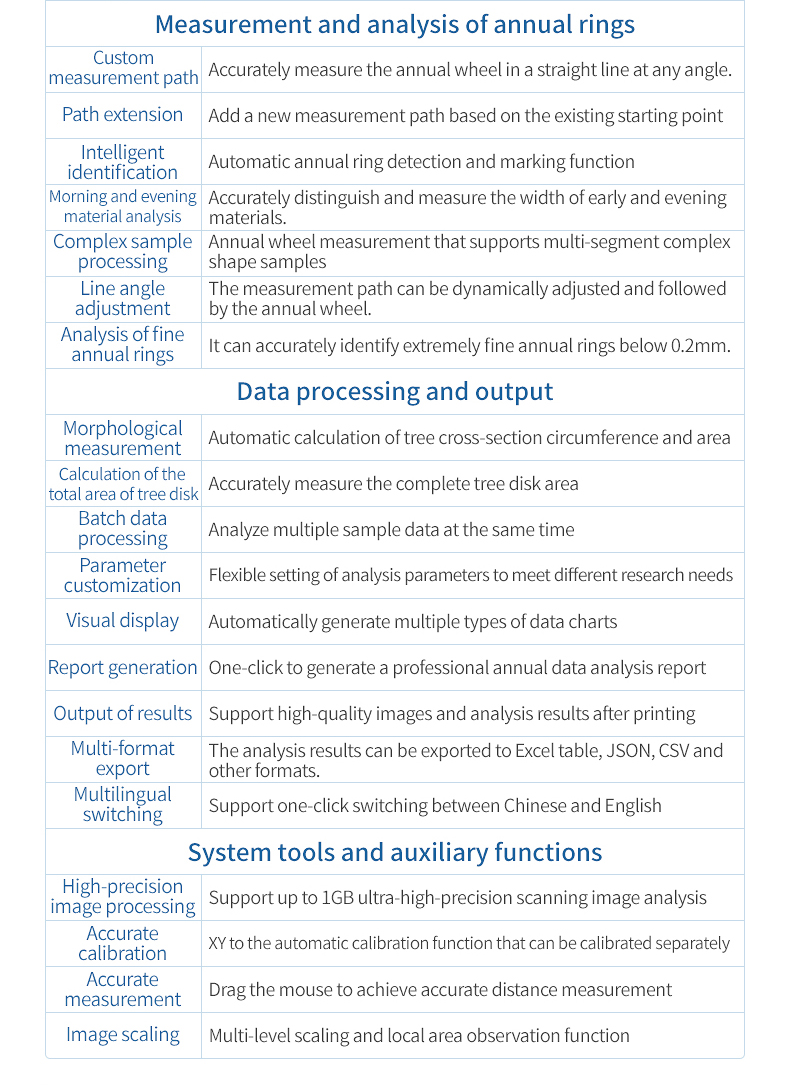

2、Measurement and analysis of tree rings

-Custom measurement path: Accurately measure tree rings along any angle and straight line direction

-Path extension: Add new measurement paths based on existing starting points

-Intelligent recognition: automatic ring detection and marking function

-Early and Late Wood Analysis: Accurately Distinguishing and Measuring the Width of Early and Late Wood

-Complex sample processing: supports ring measurement of multi segment complex shaped samples

-Line angle adjustment: The measurement path can be dynamically adjusted and follow the direction of the tree rings

-Micro annual ring analysis: can accurately identify extremely fine annual rings below 0.2mm

3、Data processing and output

-Morphological measurement: automatic calculation of tree cross-sectional circumference and area

-Calculation of total area of tree disk: Accurately measure the complete area of the tree disk

-Batch data processing: simultaneous analysis of multiple sample data

-Parameter customization: flexible setting of analysis parameters to meet different research needs

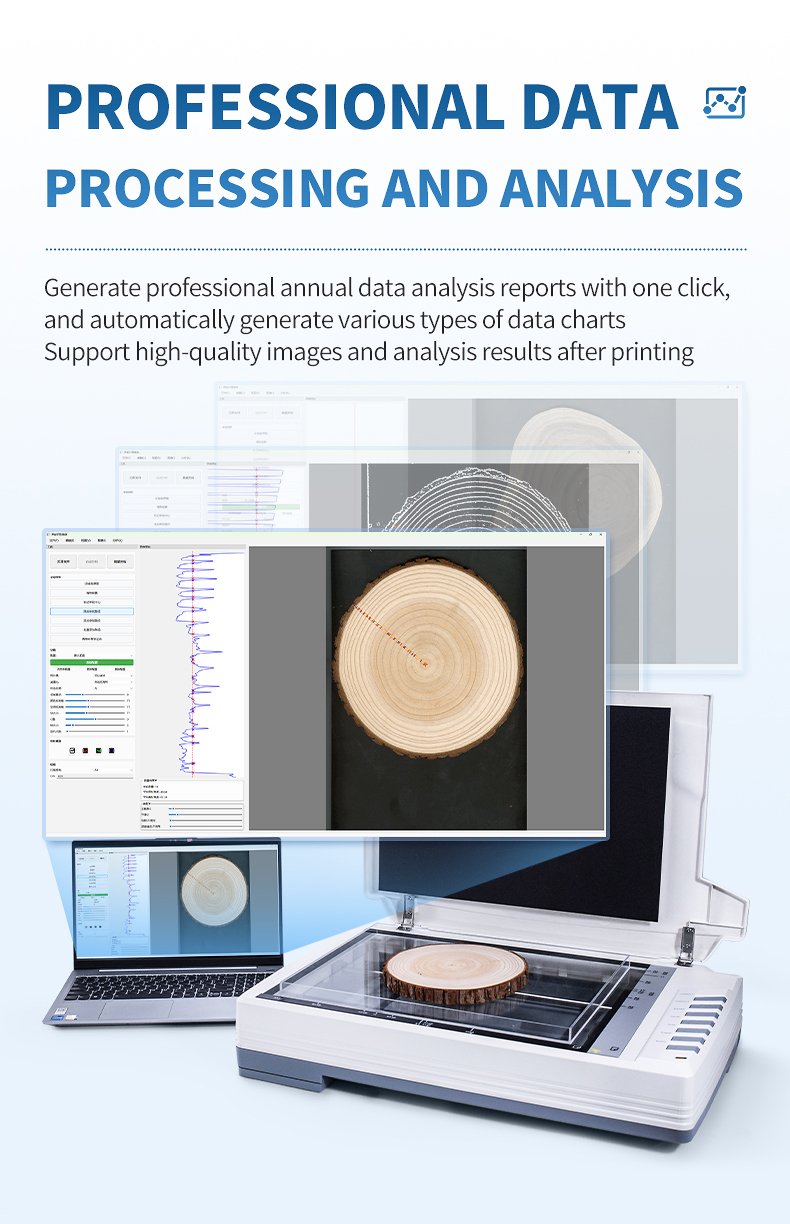

-Visual display: Automatically generate multiple types of data charts

-Report generation: One click generation of professional annual ring data analysis report

-Result output: Supports printing high-quality images and analysis results after processing

-Multi format export: Analysis results can be exported in formats such as Excel, JSON, CSV, etc

-Multi language switching: supports one click switching between Chinese and English

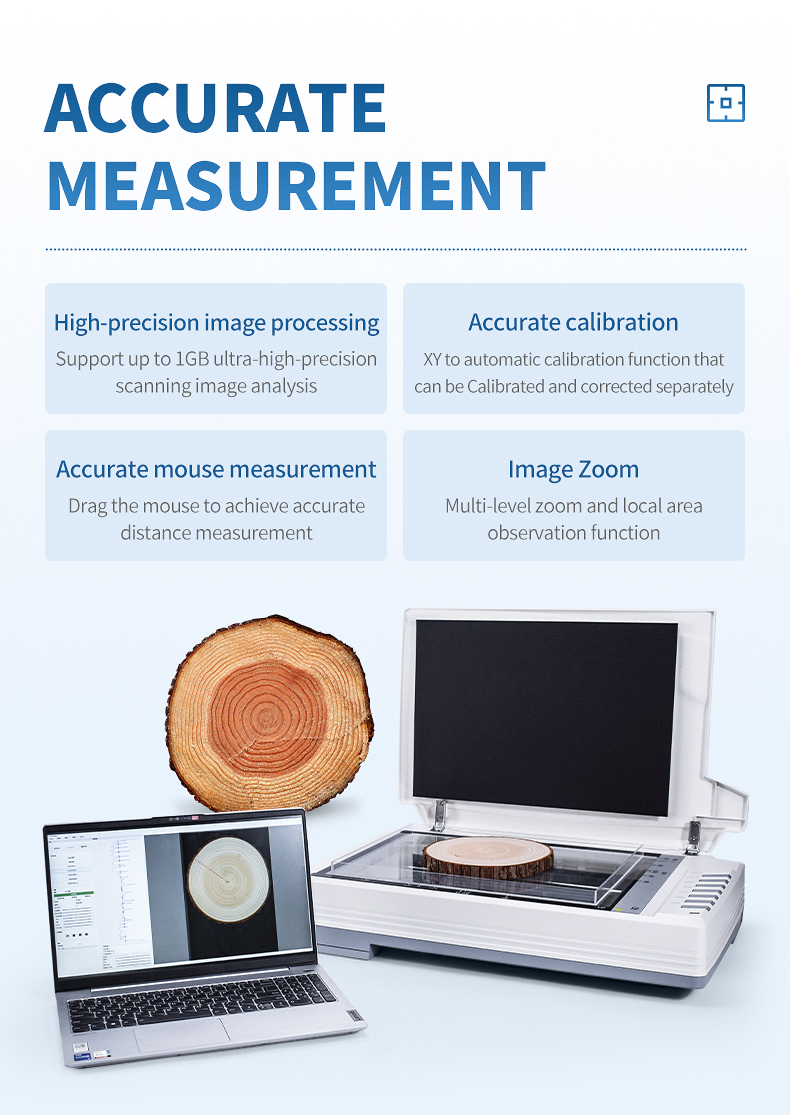

System tools and auxiliary functions

-High precision image processing: supports up to 1GB ultra high precision scanning image analysis

-Accurate calibration: XY direction can be calibrated and corrected separately with automatic calibration function

-Accurate measurement: dragging the mouse to achieve precise distance measurement

-Image scaling: multi-level scaling and local area observation function

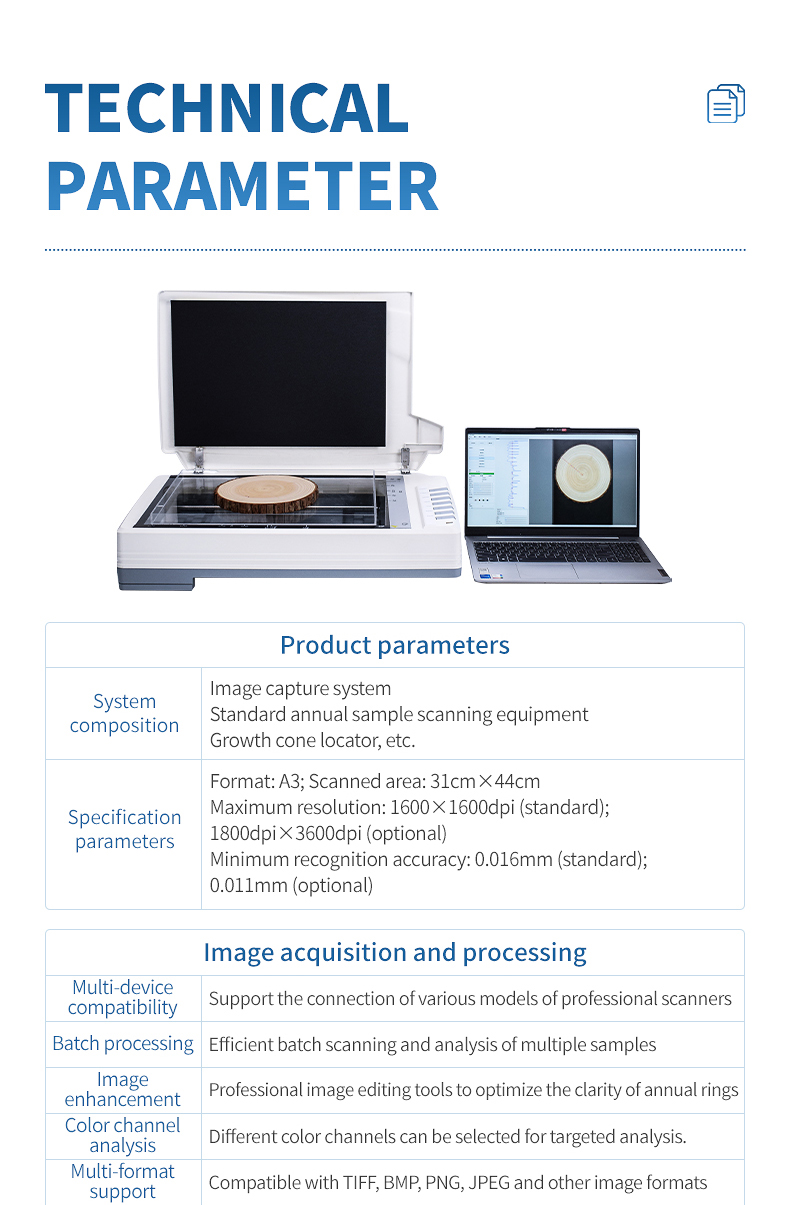

System composition

1、Image capture system

-Standard annual ring sample scanning equipment

-Growth cone locator, etc

2、Specification parameters

Size: A3

Scanning area: 31 × 44cm

Maximum resolution: 1600 × 1600dpi (standard)

1800dpiX3600dpi (optional)

Minimum recognition accuracy: 0.016mm (standard)

0.011mm (optional)

3、Accurate measurement function

-Supports 1GB ultra high precision scanning of images

-Can analyze extremely fine annual rings below 0.2mm

-XY bidirectional calibration correction

-Accurate measurement with mouse

System advantages

1. High precision measurement

0.011mm minimum resolution

Support ultra-high precision image processing

2. Intelligent processing

Automatic annual ring recognition

Intelligent boundary determination

Automatic data statistics

3. Flexibility

Multiple measurement methods

Support manual calibration

Data traceability

4. Practicality

Batch processing capability

Multi format data export

Friendly operating interface
